One Thousand Museum is a 60-story residential skyscraper designed by Zaha Hadid Architect in 2013, one of the last projects designed by British-Iraqi architect Zaha Hadid, before she died in 2016, was completed last year.

The 215 meters high tower has a reinforced concrete "exoskeleton" and is located on Biscayne Boulevard, in downtown Miami, USA.

Zaha Hadid Architects designed the full floor units, about 11,000 square feet each, on levels 51-58, come in two flavors, one with most of the living space pushed towards the front of the unit, depriving the master bedroom of a water view, and the other with the living space shifted slightly more to the side for the sake of the master bedroom's water view.

The half floor units are about 5,400 square feet, and the townhouses are 8,600 square feet. The lower floors include two-level townhouses with double height living and family areas and private elevators.

Project description by Zaha Hadid Architects

The tower’s design continues Zaha Hadid Architects’ research into high-rise construction that defines a fluid architectural expression consistent with the engineering for the entire height of a structure.

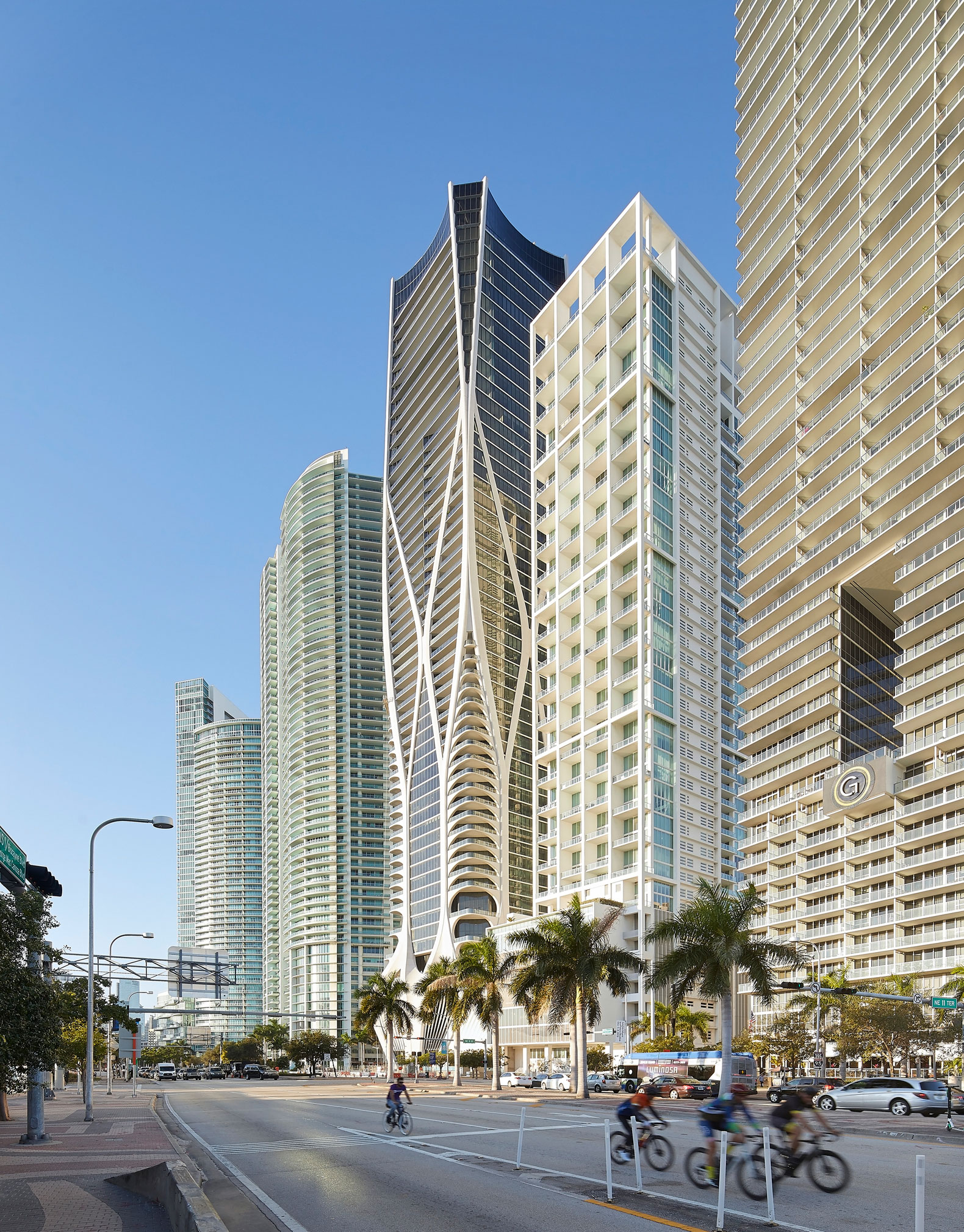

One Thousand Museum’s concrete exoskeleton structures its perimeter in a web of flowing lines that integrates lateral bracing with structural support.

Reading from top to bottom as one continuous frame, columns at its base fan out as the tower rises to meet at the corners, forming a rigid tube highly resistant to Miami’s demanding wind loads; its curved supports creating hurricane resistant diagonal bracketing.

“The design expresses a fluidity that is both structural and architectural,” explains Zaha Hadid Architects’ project director Chris Lepine. “The structure gets thicker and thinner as required, bringing a continuity between the architecture and engineering.”

One Thousand Museum incorporates glass fibre reinforced concrete form-work which remains in place as construction progresses up the tower. This permanent concrete form-work also provides the architectural finish that requires minimal maintenance. Behind the exoskeleton, the faceted, crystal-like façade contrasts with the solidity of the structure.

With its frame at the perimeter, the tower’s interior floor plates are almost column-free; the exoskeleton’s curvature creating slightly different plans on each floor. On the lower floors, terraces cantilever from the corners, while on the upper floors, the terraces are incorporated behind the structure.

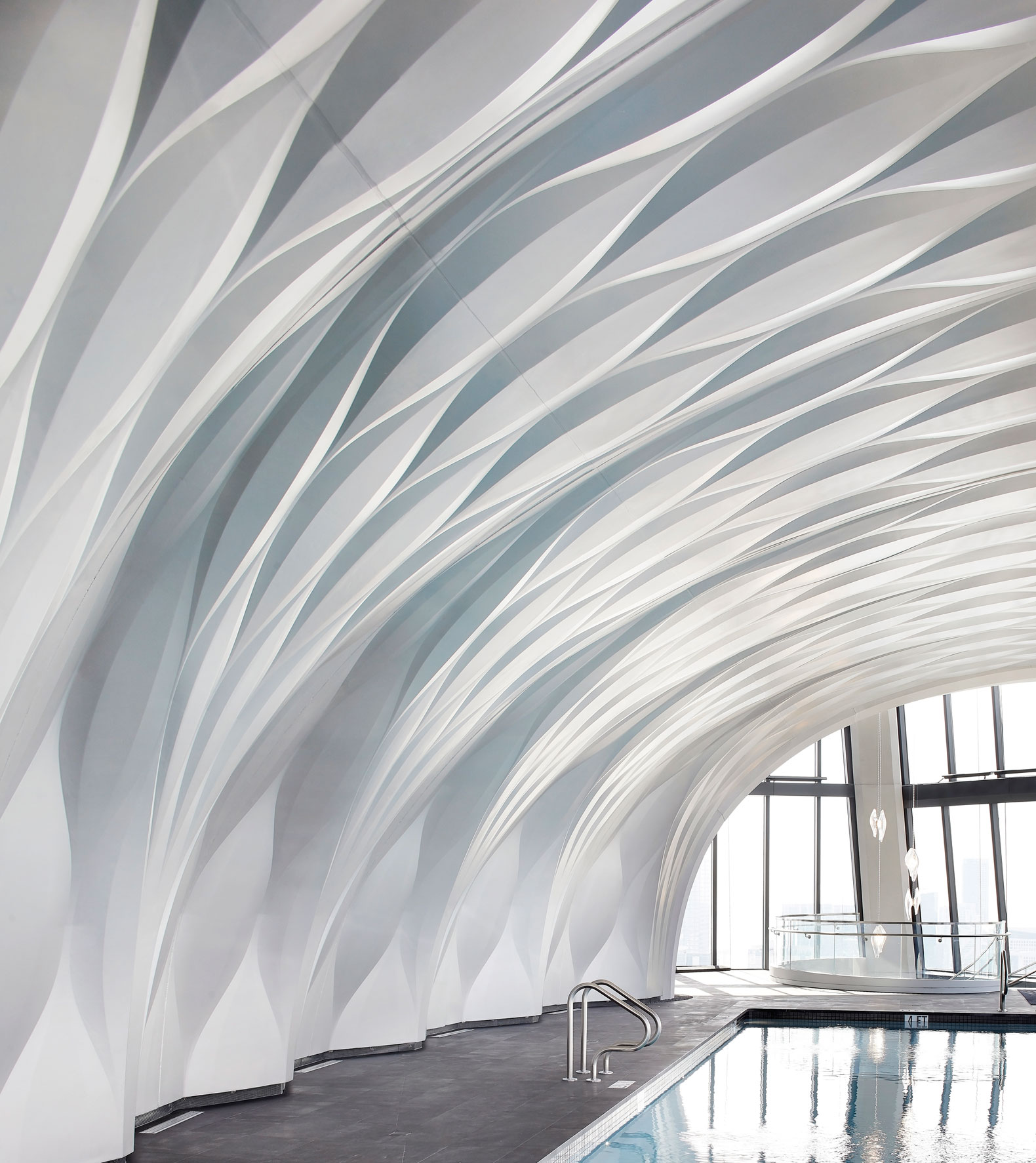

The top floors of the tower feature an aquatic center, lounge and event space. Landscaped gardens, terraces and pools are located above the lobby and residents’ parking.

Read more
Read less

More information

Label
Architects
Text
Zaha Hadid Architects. Zaha Hadid, Patrik Schumacher.  Project Director.- Chris Lepine.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project Team
Text
Alessio Constantino, Martin Pfleger, Oliver Bray, Theodor Wender, Irena Predalic, Celina Auterio, Carlota Boyer.
Competition Team.- Sam Saffarian, Eva Tiedemann, Brandon Gehrke, Cynthia Du, Grace Chung, Aurora Santana, Olga Yatsyuk.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Local Architect.- O’Donnell Dannwolf Partners. Structural Engineering.- DeSimone Consulting Engineers. Mep.- HNGS Consulting Engineers. Civil Engineering.- Terra Civil Engineering. Landscape.- Enea Garden Design. Fire Protection.- SLS Consulting Inc. Vertical Transportation.- Lerch Bates Inc. Wind Tunnel Consultant.- RWDI Consulting Engineers & Scientists.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
84,637.18 m²
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Completed.- 2020
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
+ + copy Created with Sketch.
- + copy Created with Sketch.

Zaha Hadid, (Bagdad, 31 October 1950 – Miami, 31 March 2016) founder of Zaha Hadid Architects, was awarded the Pritzker Architecture Prize (considered to be the Nobel Prize of architecture) in 2004 and is internationally known for both her theoretical and academic work.

Each of her dynamic and innovative projects builds on over thirty years of revolutionary exploration and research in the interrelated fields of urbanism, architecture and design. Hadid’s interest lies in the rigorous interface between architecture, landscape and geology as her practice integrates natural topography and human-made systems, leading to experimentation with cutting-edge technologies. Such a process often results in unexpected and dynamic architectural forms.

Education: Hadid studied architecture at the Architectural Association from 1972 and was awarded the Diploma Prize in 1977.

Teaching: She became a partner of the Office for Metropolitan Architecture, taught at the AA with OMA collaborators Rem Koolhaas and Elia Zenghelis, and later led her own studio at the AA until 1987. Since then she has held the Kenzo Tange Chair at the Graduate School of Design, Harvard University; the Sullivan Chair at the University of Illinois, School of Architecture, Chicago; guest professorships at the Hochschule für Bildende Künste in Hamburg; the Knolton School of Architecture, Ohio and the Masters Studio at Columbia University, New York. In addition, she was made Honorary Member of the American Academy of Arts and Letters, Fellow of the American Institute of Architecture and Commander of the British Empire, 2002. She is currently Professor at the University of Applied Arts in Vienna, Austria and was the Eero Saarinen Visiting Professor of Architectural Design at Yale University, New Haven, Connecticut.

Awards: Zaha Hadid’s work of the past 30 years was the subject of critically-acclaimed retrospective exhibitions at New York’s Solomon R. Guggenheim Museum in 2006, London’s Design Museum in 2007 and the Palazzo della Ragione, Padua, Italy in 2009. Her recently completed projects include the MAXXI Museum in Rome; which won the Stirling award in 2010. Hadid’s outstanding contribution to the architectural profession continues to be acknowledged by the most world’s most respected institutions. She received the prestigious ‘Praemium Imperiale’ from the Japan Art Association in 2009, and in 2010, the Stirling Prize – one of architecture’s highest accolades – from the Royal Institute of British Architects. Other recent awards include UNESCO naming Hadid as an ‘Artist for Peace’ at a ceremony in their Paris headquarters last year. Also in 2010, the Republic of France named Hadid as ‘Commandeur de l’Ordre des Arts et des Lettres’ in recognition of her services to architecture, and TIME magazine included her in their 2010 list of the ‘100 Most Influential People in the World’. This year’s ‘Time 100’ is divided into four categories: Leaders, Thinkers, Artists and Heroes – with Hadid ranking top of the Thinkers category.

Read more
Published on: March 10, 2020
Cite: "One Thousand Museum Residential Tower by Zaha Hadid Architects " METALOCUS. Accessed
