Dazhou Atelier is the continuation of the project of regeneration of the historic area of ​​Chaichanglong in the ancient city of Shaoxing designed by the architectural studio SpActrum in an area of ​​action that encompasses a collection of structures built by the local population during various periods before the notion of urbanism emerged.

The project is the result of a careful study of the historical and urban transitions of the place, which were initially private properties from different eras, to turn it into a set of public spaces and facilities. This new phase of the project creates an innovative roof over a set of buildings, a set of steps and platforms, that presents itself as a new public square, an event space that dialogues with the project previously completed by the practice: Stellar Island.

The project started in 2018 by SpActrum, an architecture studio led by Yan Pan, marks Shaoxing's first organic renovation project in the city centre, establishing a new spatial continuity that breaks the boundaries between the different buildings, where visitors can take a sensorial journey of different spatial and temporal layers.

The building functions as an entry point to a tour of courtyards and walkways at height, which shows the construction techniques and history of the place, which can be recognised in the project thanks to the conservation of different parts of the original buildings. A journey whose materiality fuses the new with the old, through glass and steel structures, which in a dialogical way, shape the new construction.

Surroundings renovation Dazhou Atelier: Sky Plaza and Secret Garden by SpActrum. Photograph by ZhuDi@SHADØOPLAY.

Project description by SpActrum

This project is a pivotal part of the Chaichanglong Historic Area Organic Regeneration initiative in the old city of Shaoxing. The site comprises a collection of structures built by local people over various periods before the notion of planning came into being. Over time, these structures have decayed and become dilapidated, leaving behind remnants and scattered brick debris that form the existing site conditions.

SpActrum has studied the site's historical transitions, and converted these originally private properties into a public destination. The interplay between architecture and landscape, interior and exterior is continuously redefined, exploring the site's continuity in space and time beyond the boundary of individual building. Ultimately, these structures transcend the conventional definition of architecture, evolving into venues for events.

Initiated in 2018, the Chaichanglong Historic Area Urban Regeneration marks Shaoxing's first organic renewal project in the city center. Steered by chief architect Yan Pan, SpActrum explored the continuity of architecture in both temporal and spatial dimensions. The team considered both ordinary buildings and heritage buildings within the site as integral, organic parts of the past, which have continuously shaped the site’s unique features and value. In addition to temporal continuity, the site exhibits spatial continuity beyond individual buildings.

Renovación del entorno de Dazhou Atelier: Sky Plaza y Jardín Secreto por SpActrum. Fotografía por Su Shengliang.
Surroundings renovation Dazhou Atelier: Sky Plaza and Secret Garden by SpActrum. Photograph by Su Shengliang.

The buildings within the site, having undergone functional transformations, property ownership changes, weathering, or reconstruction, have evolved repeatedly, breaking the fixed relationship between architectural program and its spatial enclosure. In this way, these buildings have become interconnected and merged with each other, blurring boundaries and integrating into the site, even forming a continuous carpet-like "terrain", where the boundaries of individual buildings no longer exist. This "terrain" formed by the land, buildings, and their derivatives offers a hybrid "matrix" for new constructions. The Dazhou Atelier, located in the northeast corner of this "terrain" and near Hechangtang Road, serves as the gateway to the comprehensive Chaichanglong renovation project.

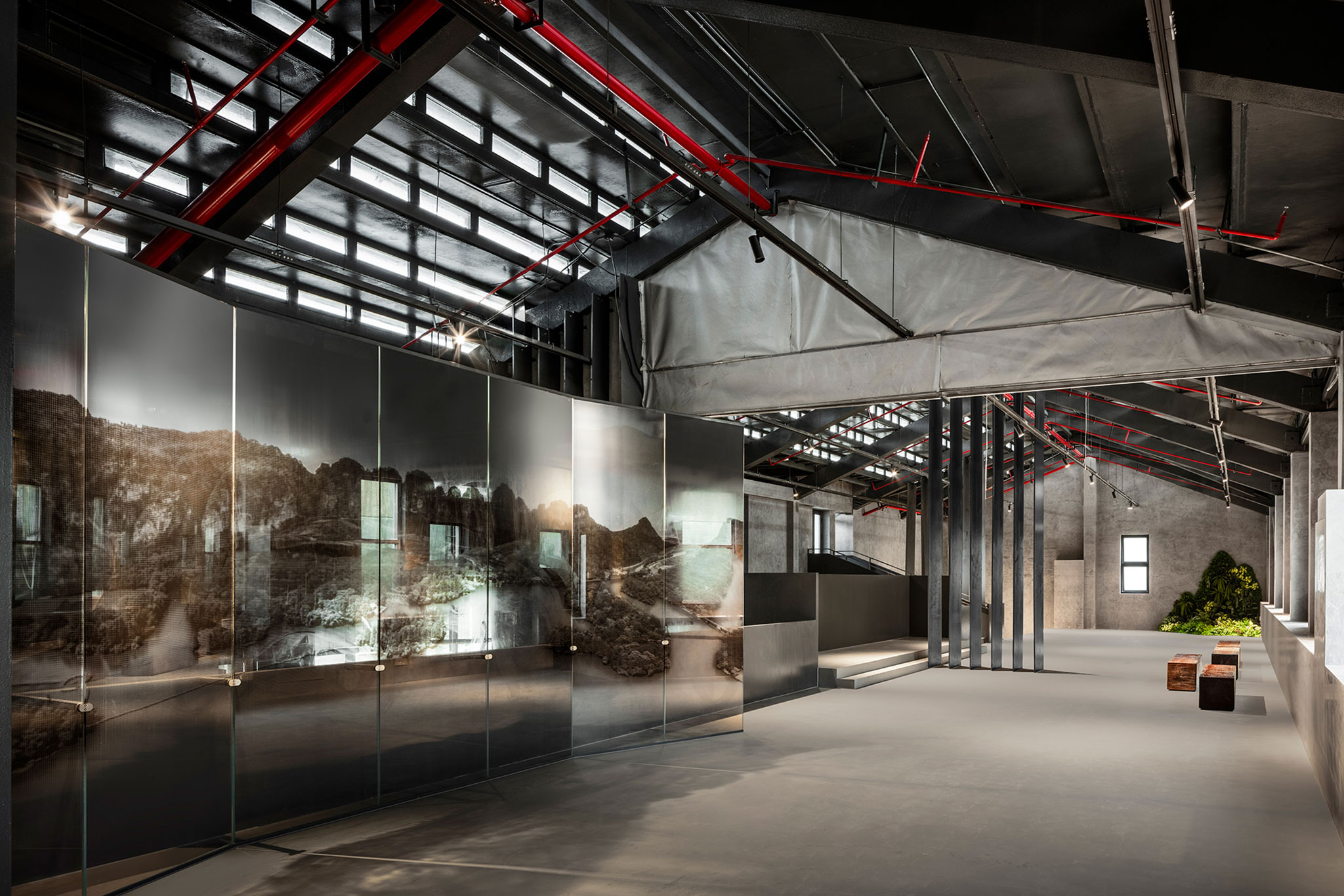

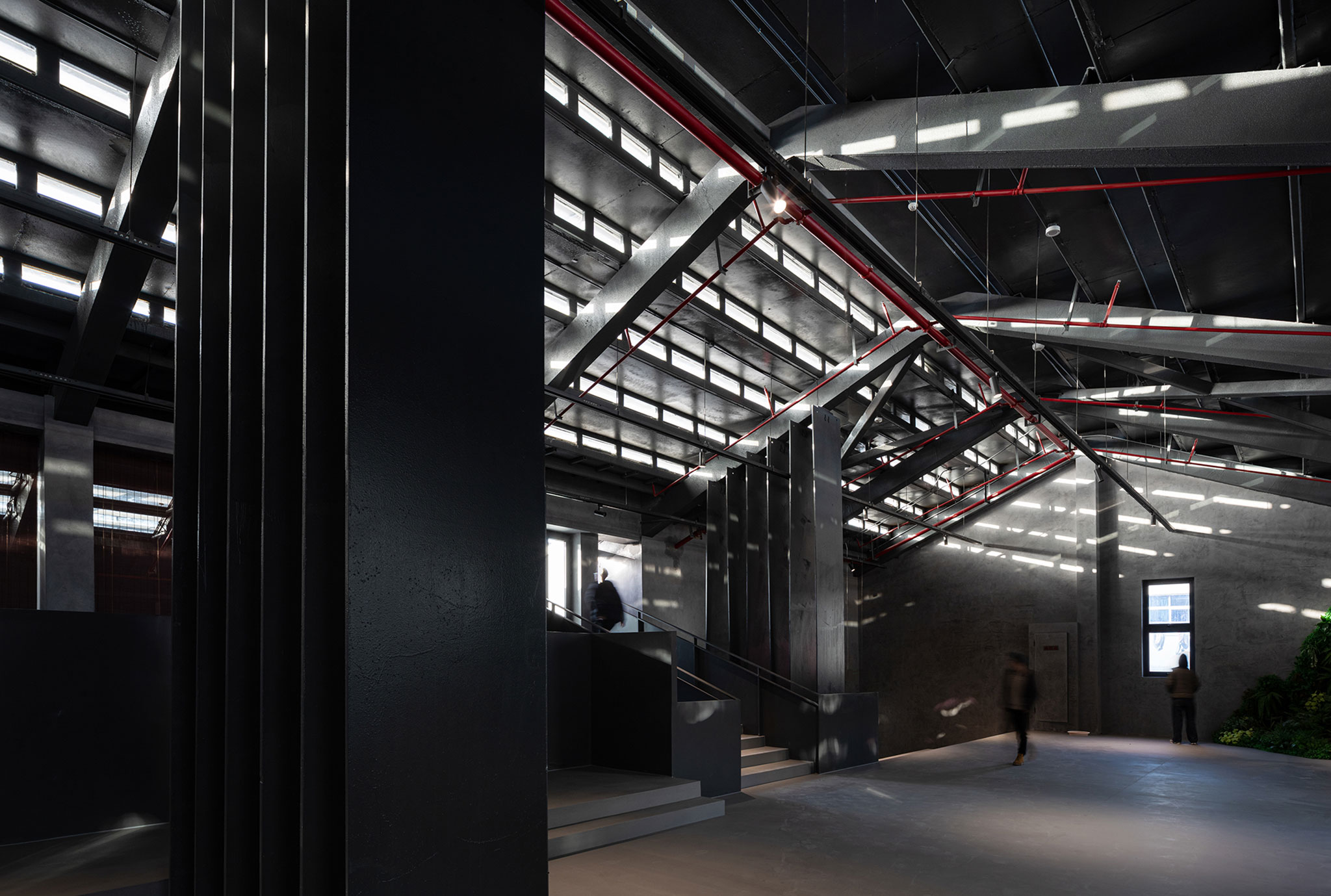

In the north of the site stands a three-storey apartment block from the 1970s. On the east lies a large factory building with only the purlins remaining at the top, and an ancillary dormitory building opposite it. Between them, a small two-storey building stands to the north, while the factory building extends parallel from the south, together enclosing a courtyard littered with debris, including a buried staircase leading to the factory building's second floor.

The site comprises diverse architectural remnants, from private residences, apartments to industrial structures, reflecting a range of styles and requiring a renovation philosophy that retains the site’s memories. The renovation fosters the connections with the immediate surroundings within the site and the external context both in time and space. The western wall of the factory building has been preserved, and the courtyard is redefined with a modern steel and glass facade. The roof's original framework is retained, with purlins transforming into seating steps, allowing natural light to penetrate and maintain the building's original character.

Surroundings renovation Dazhou Atelier: Sky Plaza and Secret Garden by SpActrum. Photograph by Su Shengliang.
Surroundings renovation Dazhou Atelier: Sky Plaza and Secret Garden by SpActrum. Photograph by Su Shengliang.

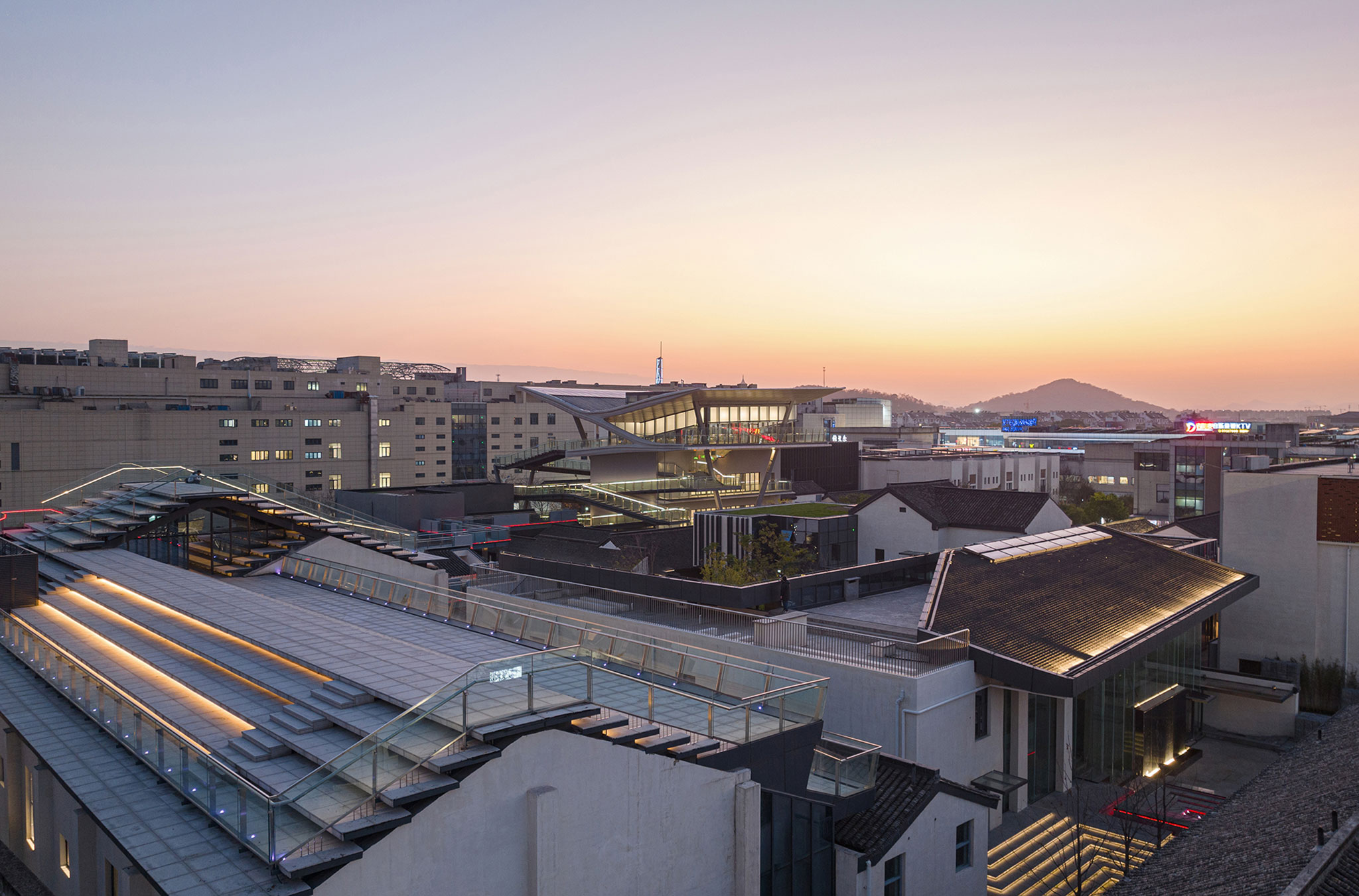

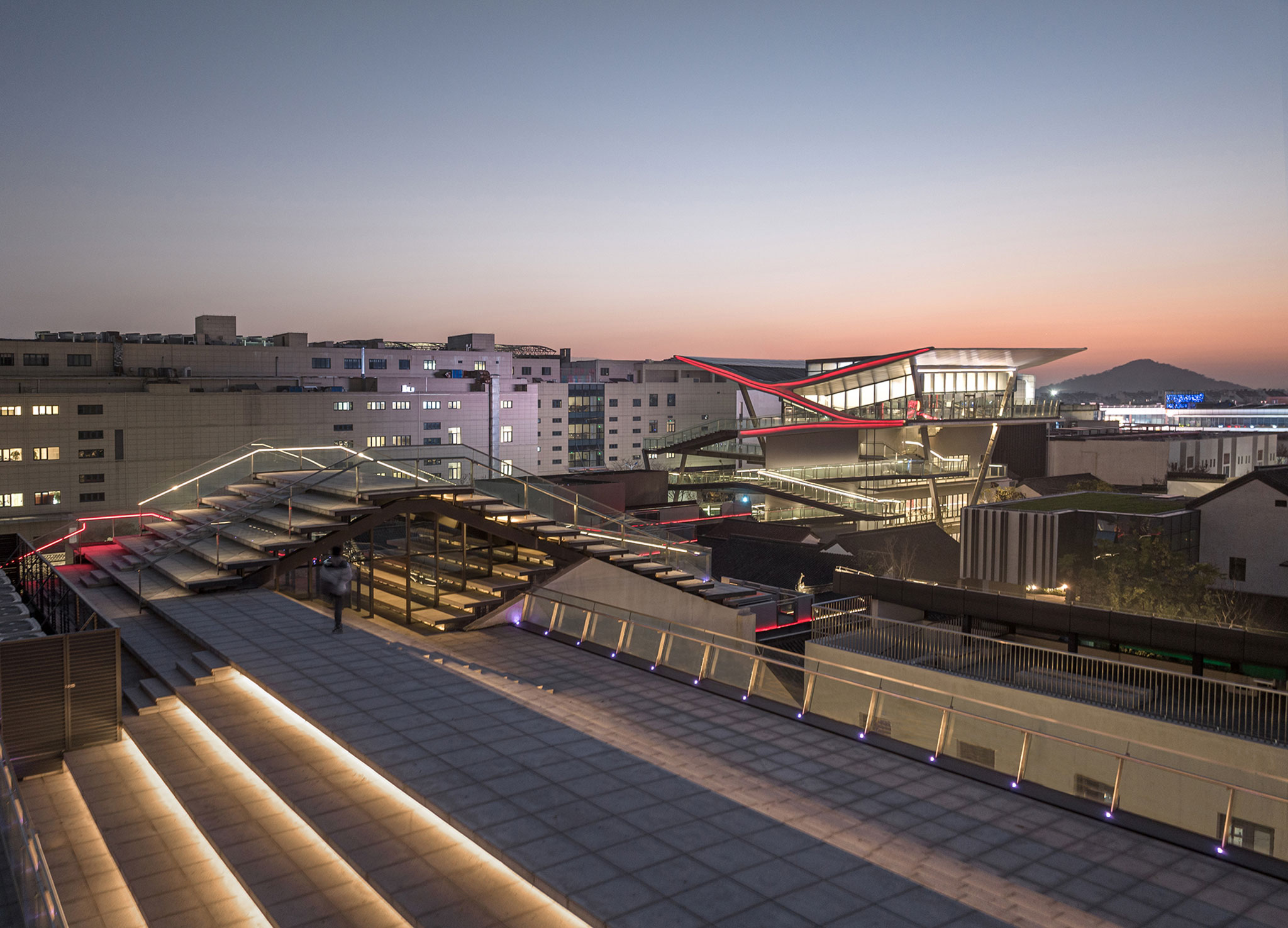

Thus, with minimal intervention, the architect created an aerial platform that overlooks and connects with the Chaichanglong and Tashan historical areas. This platform acts as a new urban public space, a plaza, or an urban terrace, and is the northern entry point for an aerial corridor system. Steps inside lead to this walkway, and the interior functions as a flexible exhibition space for cultural activities, with steel walls like bookshelves blending industrial and cultural aesthetics.

The apartment building, situated on the northwest side of the courtyard, was demolished due to its obstruction of the entire site's access and visual connection, as well as the difficulty in structural restoration. On its footprint, a glass entrance hall has been constructed. The small two-story structure at the north of the courtyard is preserved, and the auxiliary dormitory building opposite the courtyard is integrated under the L-shaped steel roof of the newly built glass entrance hall. This roof, folding like an L-shaped ruler, creates a terrace through innovative rooftop cuts, offering a performance stage opposite the stepped roof.

The small pitched-roof house on the southwest side of the courtyard, lacking historical charm, has its walls retained and roof removed. Embraced by the L-shaped roof, it becomes a semi-open "secret garden" that preserves traces of past domestic life. Its north gable wall extends into the glass house, becoming the new building's southern facade. The south and west walls preserve the full spectrum of life's marks, including the vertical traces of demolished interior walls, weathered doors and windows, and the original interior tiles, all of which faithfully document the spatial configuration and life imprints of the former residential structure. The original interior now transforms into a vibrant open-air garden, with old wooden planks used for stepping, indicating the trace of dead trees.

Renovación del entorno de Dazhou Atelier: Sky Plaza y Jardín Secreto por SpActrum. Fotografía por ZhuDi@SHADØOPLAY.
Surroundings renovation Dazhou Atelier: Sky Plaza and Secret Garden by SpActrum. Photograph by ZhuDi@SHADØOPLAY.

In this way, the courtyard embodies life and death, flourishing and decay. It presents a unique landscape forged not by aesthetics but by the physical and material properties that define it. The architect's role was merely to authentically reveal this reality, creating a meaningful landscape that is genuinely presented.

As internal spaces interweave and the notion of individual building fades, the site integrates into the broader spatial-temporal context of its surroundings. It is connected to the Stellar Isle on the other side via a sky corridor on the southern side of the roof. In this area, which has been the center of the old city of Shaoxing for over a thousand years, the architectural intervention either inverts traditional concepts of interior and exterior, or integrates buildings from various periods and styles under one roof, or innovatively transforms the roof into an urban plaza. It reveals the construction techniques of different eras, breaking boundaries between individual buildings and merging them into a habitable venue. Thus, with minimal alteration, buildings from various eras blend into an archive that can be reviewed at any time. This project intentionally transcends the continuity of time and space contexts of individual buildings, transforming it into a tangible sensory journey for people.

More information

Label
Architects
Text

SpActrum. Lead architect.- Yan Pan.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project team
Text

Zhen Li, Yimeng Tang, Ying Li, Hao Chen, Xianglong Meng, ShAil Paragkum Patel, Gregorio Soravito, Jinyu Wan.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text

Landscape Design.- PHOOO Design.
Structural Design.- China International Engineering Design & Consult Co., Ltd.
Lighting Design.- AT. AART Design.
Curtain Wall Design.- GHAD.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Client
Text

Shaoxing Historical and Cultural City Protection Office, New Century Cultural Tourism.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text

Hangzhou Xiaoshan Guangyu Architectural Construction Ltd.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text

Site Area.- 2,528.59 sqm.
Total Building Area.- 4,586.64 sqm.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text

Completed.- 2022 December.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text

Chaichanglong (Fairy Li), Shaoxing, Zhejiang, China.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
+ + copy Created with Sketch.
- + copy Created with Sketch.
SpActrum. Research-driven architecture practice founded in 2012 by Yan Pan and Zhen Li in London. They later established the Beijing office in 2016 and the Shanghai Design Centre in 2021. The founders of SpActrum graduated from the Bartlett School at UCL and the AA School, and have extensive practical experience in the world's leading architectural design studios and a deep academic and fine art background.

Through architectural practice, the firm strategically engages with key areas of social change in China. SpActrum, in its involvement in urban renewal and rural transformation projects, delves into the era of post-urbanisation in China, employing temporal and spatial continuity as weapons against dogmatic attitudes towards history and the deprivation of intuitive experiences.

They have been actively involved in various leisure complexes and hotel projects. Such initiatives seek to establish transcendent connections with nature and sensual experiences. At the same time, SpActrum has immersed itself in the creation of new consumer scenarios, engaging in critical interventions within the age of consumption. They seize diverse opportunities for practice as a means to explore and develop architectural philosophies. Meanwhile, they believe in the refining power of form in architectural thinking, recognising that form is the ultimate medium of architectural issues. Therefore, they always strive to explore methods to generate new forms in the dynamic and conflicting modern society.

Yan Pan. Co-founder of SpActrum and Chief Architect. Graduated from the Bartlett School of Architecture UCL, London, under the supervision of legendary architect and architectural educator Professor Sir Peter Cook. Before starting his own practice, he worked at renowned firms such as Foster + Partners, KPF, etc. In recent years, Yan Pan has led his team to become deeply involved in the fields of hospitality and leisure, urban regeneration, culture and tourism, and other areas where social change is profound and significant.

His works have won numerous international design awards, such as the AIA Shanghai-Beijing Design Awards Honour Award, IDA Design of the Year Award, Asian Design Awards Grand Prize, A' Design Gold Award, Gold Award of the International Ancient City Innovation Competition, UDAD Award Winner, IPA Five Star Award, IAA Awards, 40 Under 40 Award, etc., and was selected by the world famous architecture magazine Domus 100, the SYMBIOSIS section of the 18th International Architecture Exhibition La Biennale di Venezia, and featured on the cover of New International Architecture 2021.
