Modulation for the little ones. 4 Modular Kindergartens by SUMMARY
03/05/2024.
[Lisbon] Portugal
metalocus, NICOLÁS RUIZ CARRILLO
metalocus, NICOLÁS RUIZ CARRILLO
Architecture studio SUMMARY has completed 4 Modular Kindergartens in Lisbon. The buildings arose in response to a public initiative project through a competition launched by the City Council, with the aim of increasing the network of public kindergartens in the city.
Located in four different locations within the Portuguese capital, the proposal is based on the superposition of prefabricated reinforced concrete structural modules.
These four nurseries have a similar organic and functional distribution, where two groups of superimposed "U"-shaped modules house various compartments, and a central corridor between them where all the horizontal and vertical circulation takes place (hallways, stairs and elevators).
Located in four different locations within the Portuguese capital, the proposal is based on the superposition of prefabricated reinforced concrete structural modules.
These four nurseries have a similar organic and functional distribution, where two groups of superimposed "U"-shaped modules house various compartments, and a central corridor between them where all the horizontal and vertical circulation takes place (hallways, stairs and elevators).

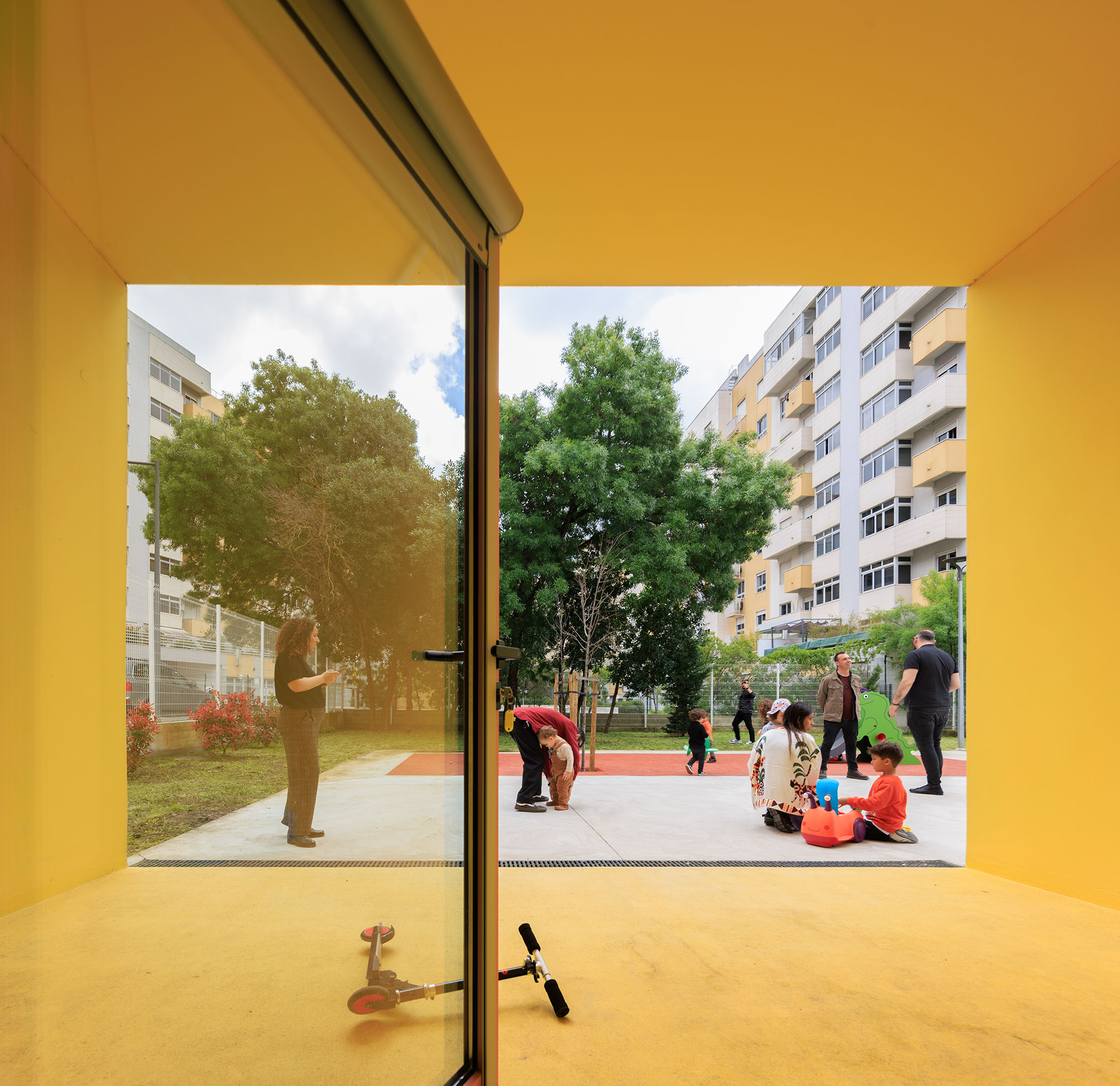

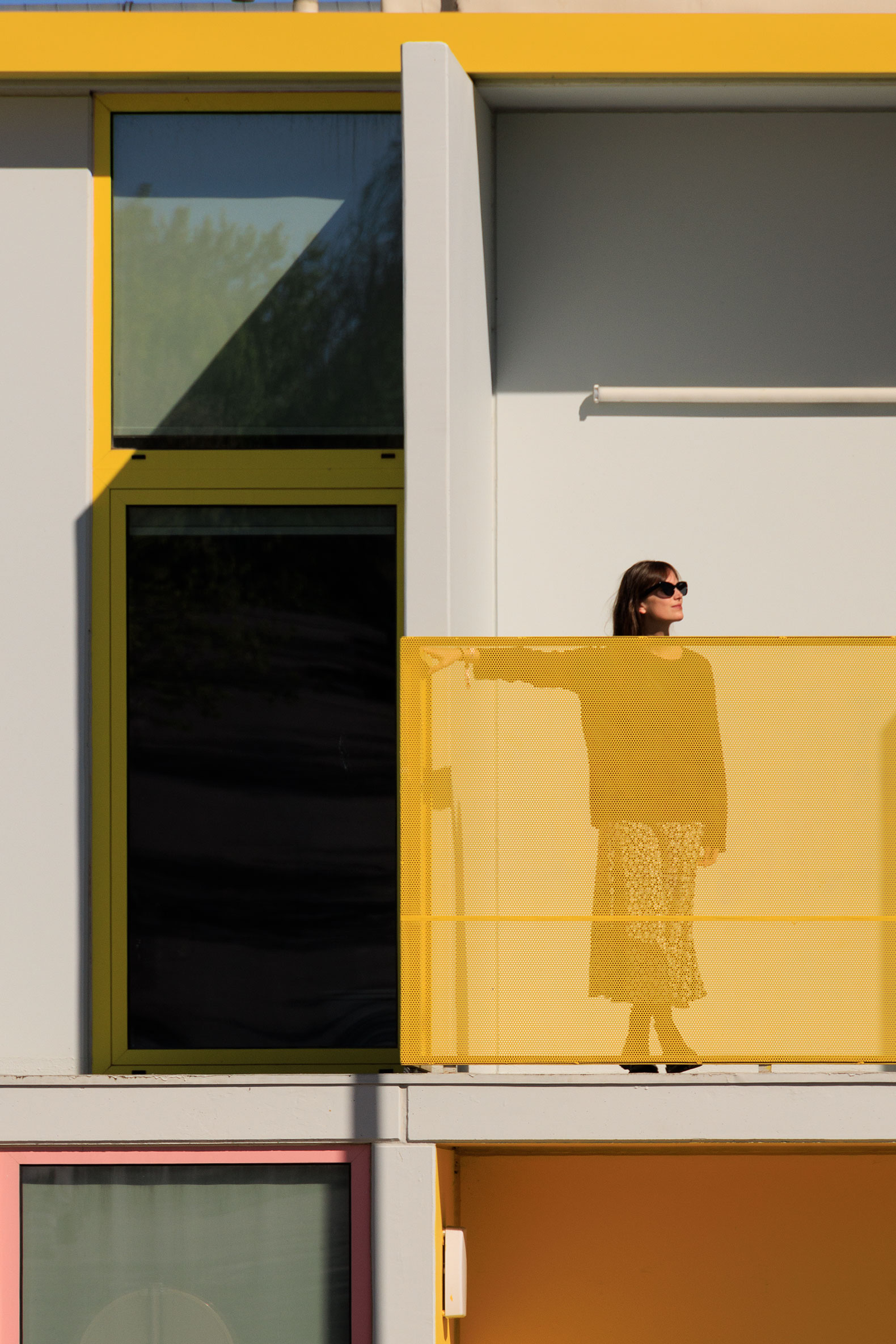

4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra.
Location Map. 4 Modular Kindergartens by SUMMARY.
Model A1-A2. Ground Floor Plan and First Floor Plan. 4 Modular Kindergartens by SUMMARY.
Model B1-B2. Ground Floor Plan and First Floor Plan. 4 Modular Kindergartens by SUMMARY.
Model A1-A2. Elevations. 4 Modular Kindergartens by SUMMARY.
Model B1-B2. Elevations. 4 Modular Kindergartens by SUMMARY.
Model A1-A2. Sections. 4 Modular Kindergartens by SUMMARY.
Model B1-B2. Sections. 4 Modular Kindergartens by SUMMARY.
Axonometric. 4 Modular Kindergartens by SUMMARY.
Diagram. 4 Modular Kindergartens by SUMMARY.
Diagram. 4 Modular Kindergartens by SUMMARY.
Collage. 4 Modular Kindergartens by SUMMARY.
The SUMMARY architecture studio designs the structure and construction with a prefabricated and modular three-dimensional system based on "U"-shaped reinforced concrete pieces, which are grouped and overlapped according to the needs of the program. This system facilitated and accelerated the construction of the buildings, resulting in the completion of the daycare centers in just over a year.
The kindergartens are distributed over two floors, the main service areas are located on the ground floor (kitchen, administrative areas, laundry, etc.), while the activity rooms for children are distributed over the two floors. All of these rooms have direct access to the outside, on the ground floor to the patio and on the upper floor to terraces.
The choice of reinforced concrete as the predominant material in construction is not only due to the modular configuration and the advantages mentioned previously, it also meets the imposed requirements of guaranteeing spaces of long durability and reduced maintenance.
The kindergartens are distributed over two floors, the main service areas are located on the ground floor (kitchen, administrative areas, laundry, etc.), while the activity rooms for children are distributed over the two floors. All of these rooms have direct access to the outside, on the ground floor to the patio and on the upper floor to terraces.
The choice of reinforced concrete as the predominant material in construction is not only due to the modular configuration and the advantages mentioned previously, it also meets the imposed requirements of guaranteeing spaces of long durability and reduced maintenance.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra
Project description by SUMMARY
In this project, the studio explored for the first time a three-dimensional prefabricated and modular system based on U-shaped reinforced concrete pieces, which are grouped and overlapped according to the program's needs. This system allowed for a significant acceleration of the construction process: in just 13 months, these 4 kindergartens were simultaneously built in different locations across the city of Lisbon.
The buildings emerged in response to a public initiative project for the construction of kindergartens in various areas in Lisbon, through a competition launched by the Municipality. The starting point was a standardized solution that allowed for economic intervention, quick execution, and the creation of an identifiable image, making these facilities recognizable throughout the city.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra
The proposal is based on the overlapping of structural modules in reinforced concrete, with a “U” section, shaping the building's surfaces. The choice of this material is linked not only to the modular configuration but also to the requirement evident in the competition program to ensure solutions of high and proven durability and low maintenance.
The standardization of solutions naturally implies a formal analogy among the four kindergartens. The image of the buildings arises from the potentialities and limitations imposed by the modular construction system. From the exterior, a clear tectonic reading of the buildings is possible – the joints are visible, and one can discern each of the modules and the way they are arranged and supported.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra
These 4 nurseries feature a similar organic and functional distribution: two groups of overlapping “U-shaped” modules, housing various compartments, and a central corridor between them where all horizontal and vertical circulation takes place (corridors, stairwells, and elevators). It is also within these central corridor lines that the main sections of the heating, ventilation, and air conditioning infrastructure are located, reaching the compartments through the adjacent side walls. The circulation spaces are straight and linear, facilitating user orientation within the building and visibility between all areas, promoting functionality and safety.
The outdoor spaces have been designed as an extension of the indoor activities. Some non-slip paved areas are proposed, so that wheeled toys can be used. We also considered the existence of garden areas for outdoor activities with the children. The vegetal cover on most of the outside surface contributes to soil permeability. The choice of plant and tree species was based on the criteria of adaptation to the climate, low water requirements and the exclusion of species that could cause allergic problems.
4 Modular Kindergartens by SUMMARY. Photograph by Fernando Guerra
The nurseries are distributed across two floors, making them more compact in terms of footprint to address the limited space of the plots (all located in consolidated urban areas) and to maximize external space for recreational areas. The essential service areas (kitchen, administrative zone, laundry, etc.) are situated on the ground floor, while the various activity rooms for children are spread across both floors. All these rooms have direct access to the outside - on the ground floor, to the playground; and on the upper floor, through terraces.
All the structural components of these buildings, including the foundations, were prefabricated in a factory under controlled conditions. They were then assembled on-site within a few days. These prefabricated components not only form the structure of the building but also define the facades, floors, and interior compartments. This approach allowed for a faster and more controlled construction process, avoiding on-site concreting, thus reducing waste, noise, and dust. The goal was to increase the city's network of public kindergartens without disrupting the surrounding neighbourhood during construction. Both the process and the result were equally important in achieving this objective.
More information
Architects
Project team
Samuel Gonçalves (project leader), Inês Rodrigues, João Meira, Sara Perfetti, Adina Staicu.
Collaborators
Engineering.- FTS, Technical Solutions.
Prefabrication and Assembly.- Farcimar, Soluções em Pré-Fabricados de Betão.
Prefabrication and Assembly.- Farcimar, Soluções em Pré-Fabricados de Betão.
Client
C.M.Lisboa.
Area
760 sqm + 760 sqm + 570 sqm + 570 sqm.
Location Localización
Lisboa, Portugal.
---
Lisbon, Portugal.
Photography
Samuel Gonçalves. SUMMARY
SUMMARY is a young architecture practice based in the Science and Technology Park of University of Porto, in Portugal, founded by Samuel Gonçalves in 2015. Seeking the balance between pragmatism and experimentalism, this practice develops prefabricated systems addressing a prominent challenge of contemporary architecture – to accelerate and simplify the building processes.
The practice is led by Samuel Gonçalves (architect | founder), João Meira (architect | project manager), Adina Staicu (architect) and Luca Sabbadini (architect |VR programmer).
The practice is led by Samuel Gonçalves (architect | founder), João Meira (architect | project manager), Adina Staicu (architect) and Luca Sabbadini (architect |VR programmer).
