Leeza Soho is one of over 30 projects under development by ZHA at the time of its founder Zaha Hadid's death earlier this year.

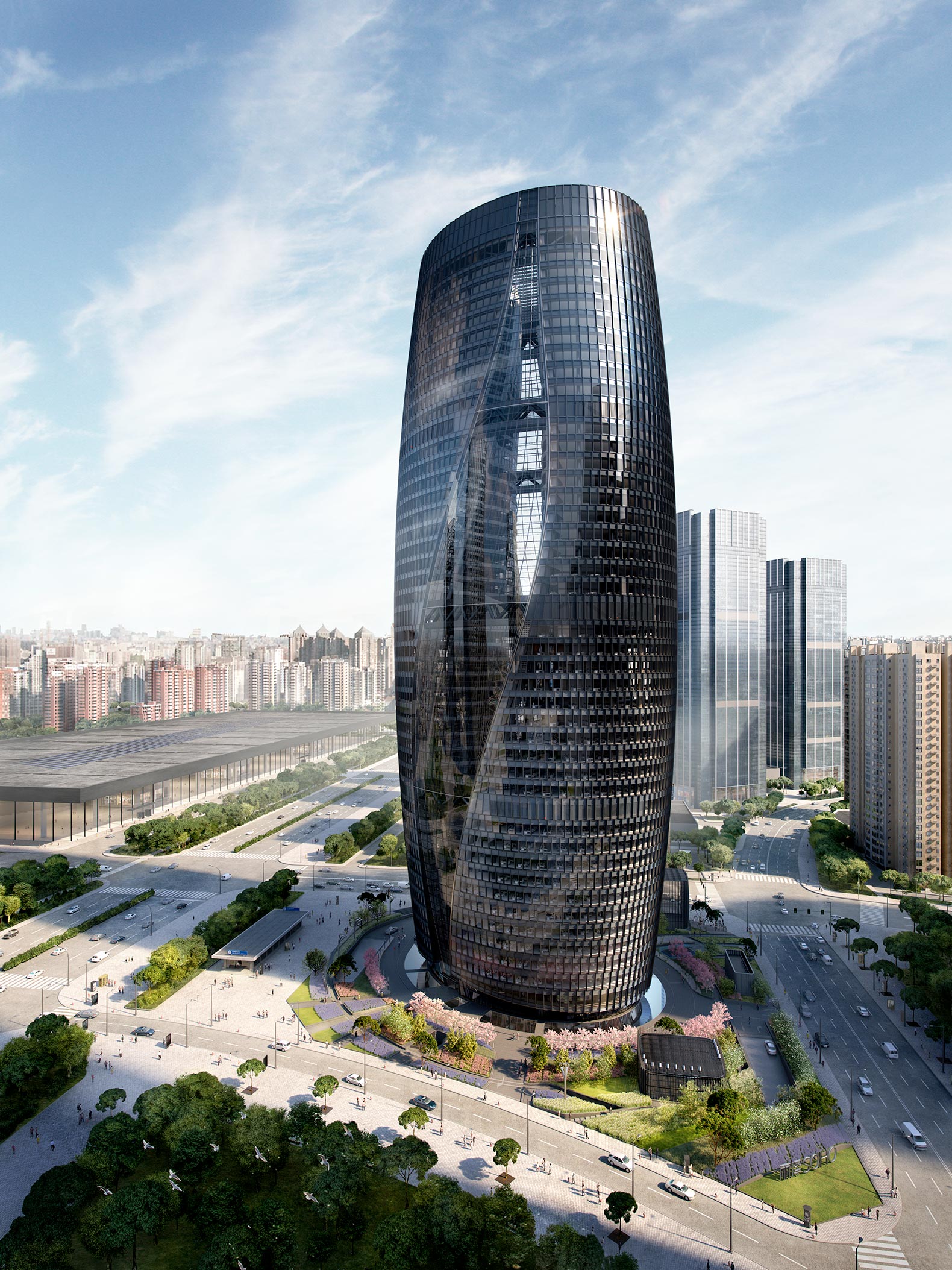

Construction is well underway on a 207-metre skyscraper by Zaha Hadid Architects in Beijing, which will feature a huge twisting atrium that is expected to be the world's tallest.
Located in the Lize Financial Business District – a new business, residential and transport hub in southwest Beijing – the 46-storey Leeza Soho will feature a mix of offices and shops.
Zaha Hadid Architects aim to keep the building's energy consumption and emissions low by implementing systems based on real-time environmental conditions.
Description of project by Zaha Hadid Architects
Construction of Leeza Soho, a 46-storey (207m) mixed-use tower with the world’s tallest atrium, has reached level 20.
Within the Lize Financial Business District – a new business, residential and transport hub adjacent to Financial Road in southwest Beijing – Leeza Soho is located at the intersection of Lines 14 and 16 currently under-construction for the Beijing Subway rail network. Directly above the new interchange station, Leeza Soho connects with the city’s bus network on Lize Road to the north and Lou Tuo Wan East Road to the east.

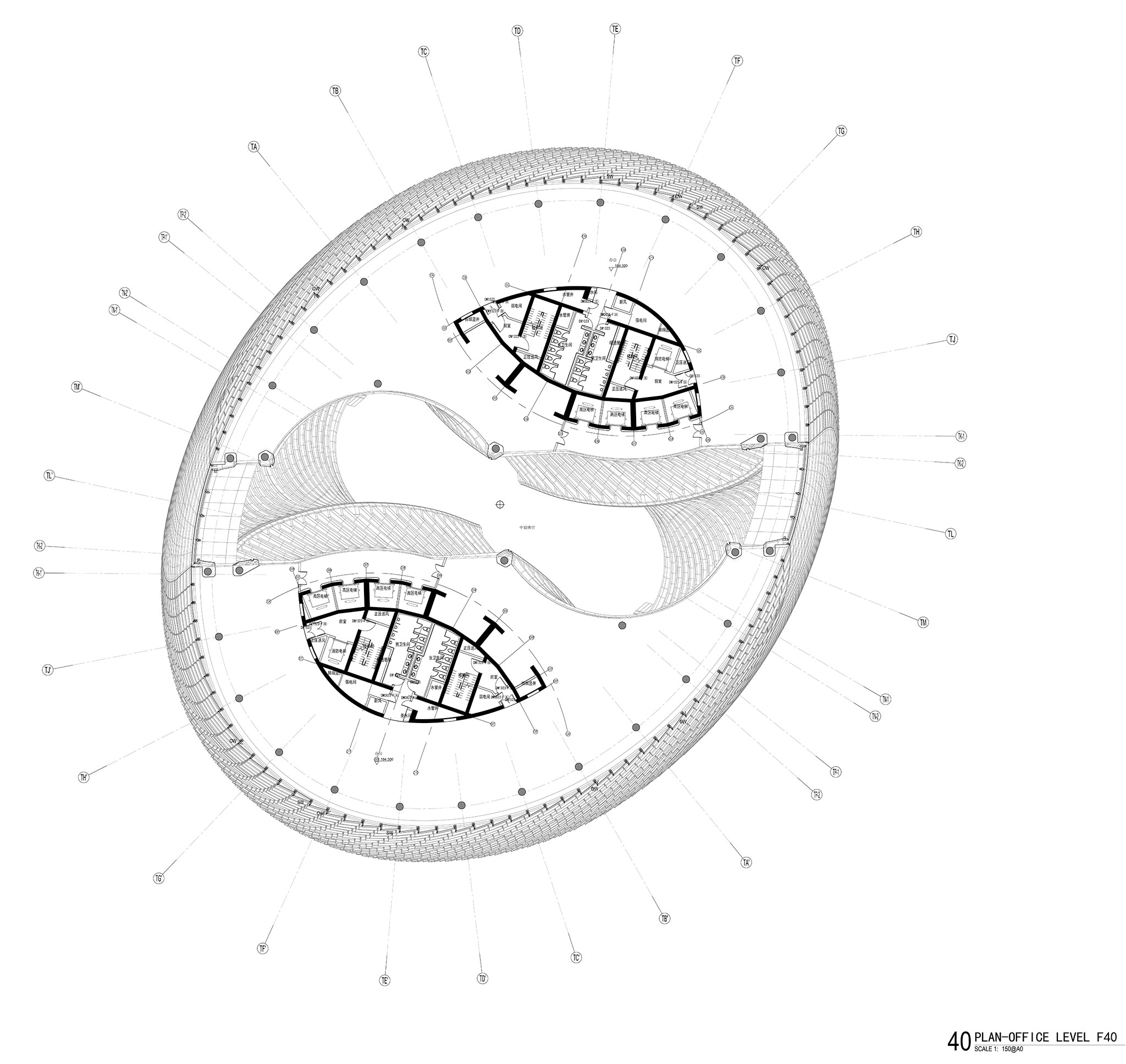

Anchoring the financial district, the 172,800m² Leeza Soho design has evolved from its specific site conditions. Straddling the new subway tunnel that diagonally divides the site, the tower rises as a single volume divided into two halves on either side of the tunnel. A central atrium – the world’s tallest – extends 190m through full height of the building, connecting the two halves together.
As the tower rises, the diagonal axis through the site defined by the subway tunnel is re-aligned by ‘twisting’ the atrium through 45 degrees to orientate the atrium’s higher floors with the east-west axis of Lize Road, one of west Beijing’s primary avenues.

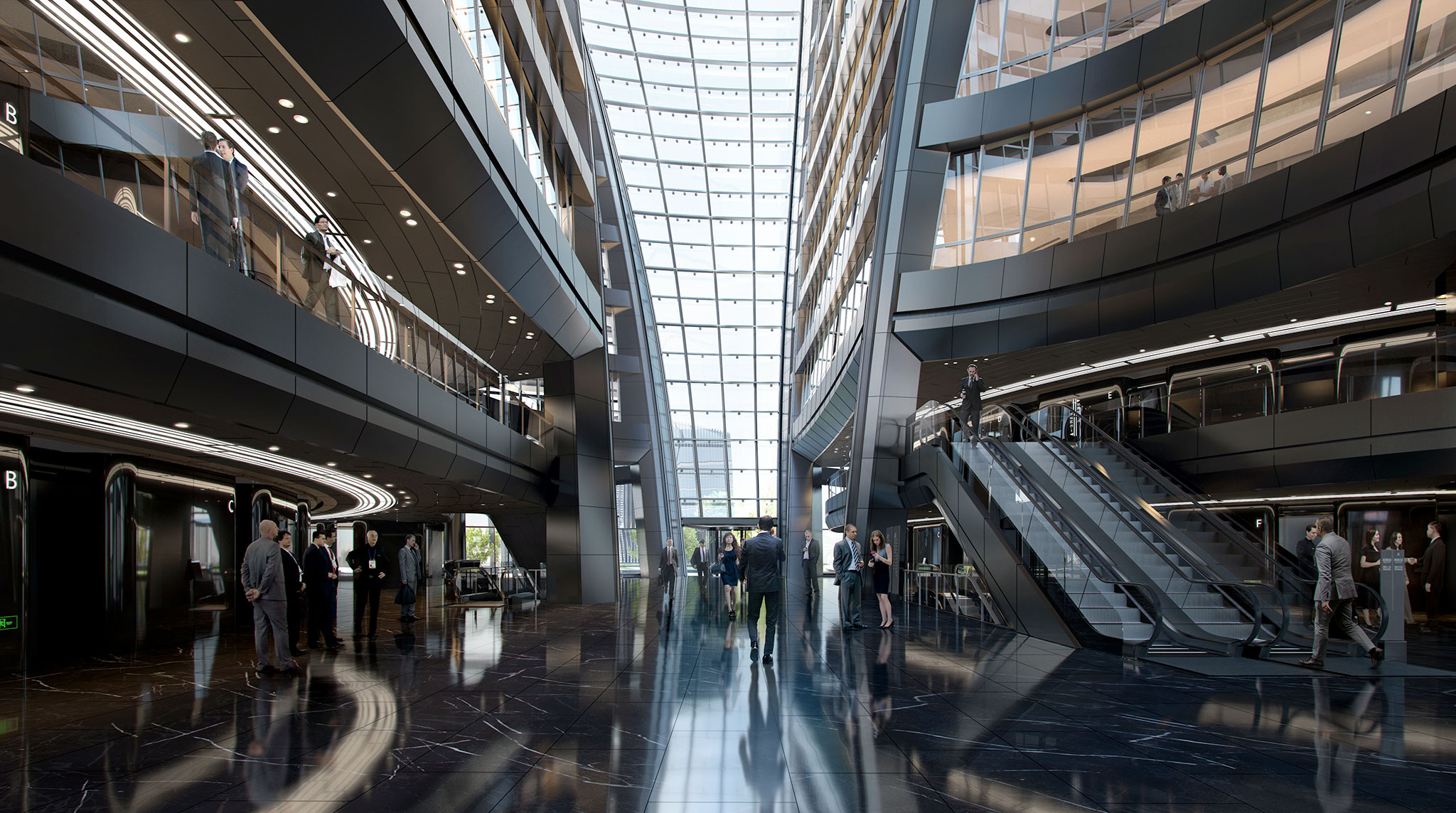

Connecting with the interchange station below, this 190m atrium will be a new public space for the city.

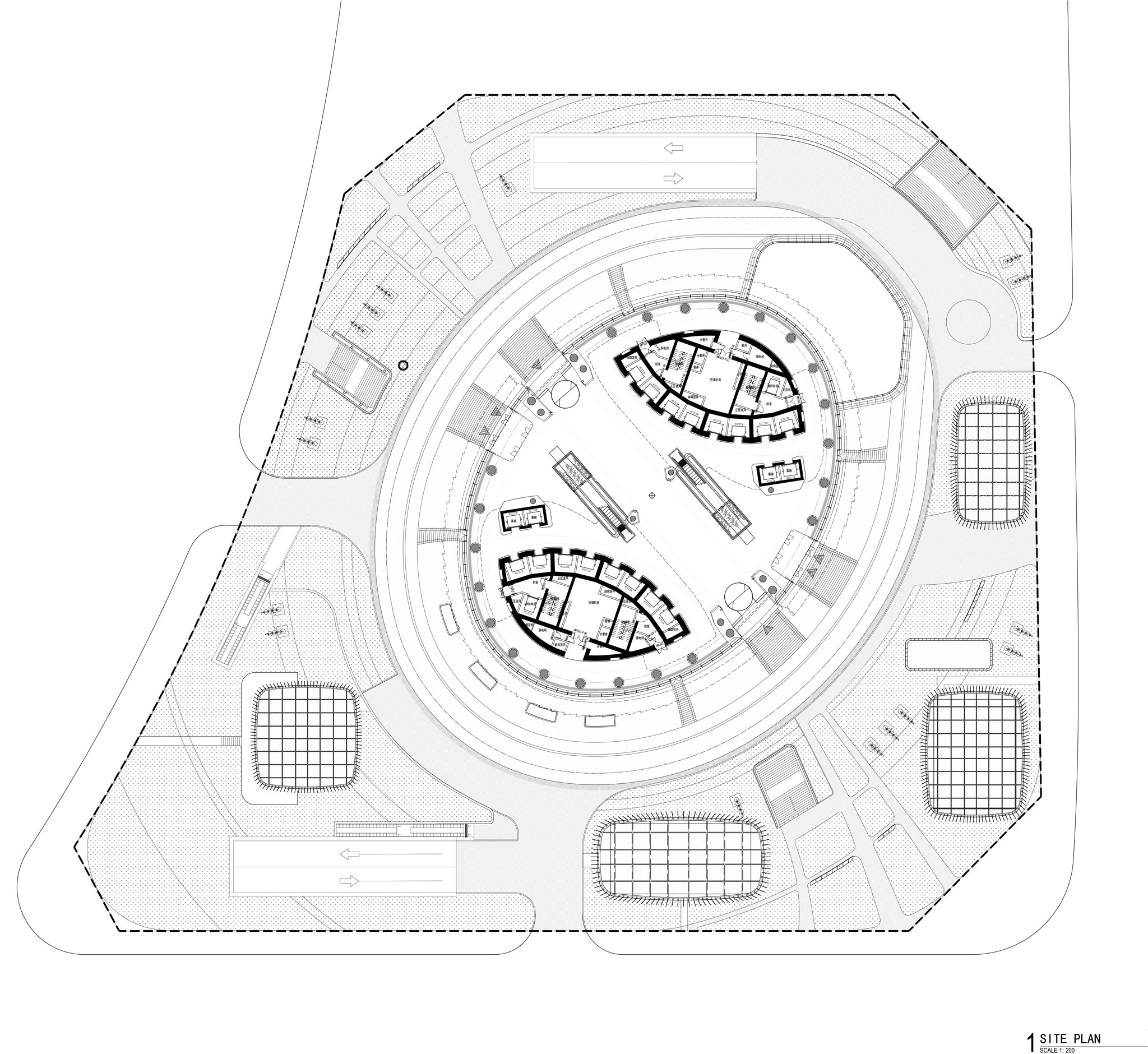

An outdoor, public piazza surrounds the tower, echoing its circular form at the centre of the new financial district and welcoming visitors inside.

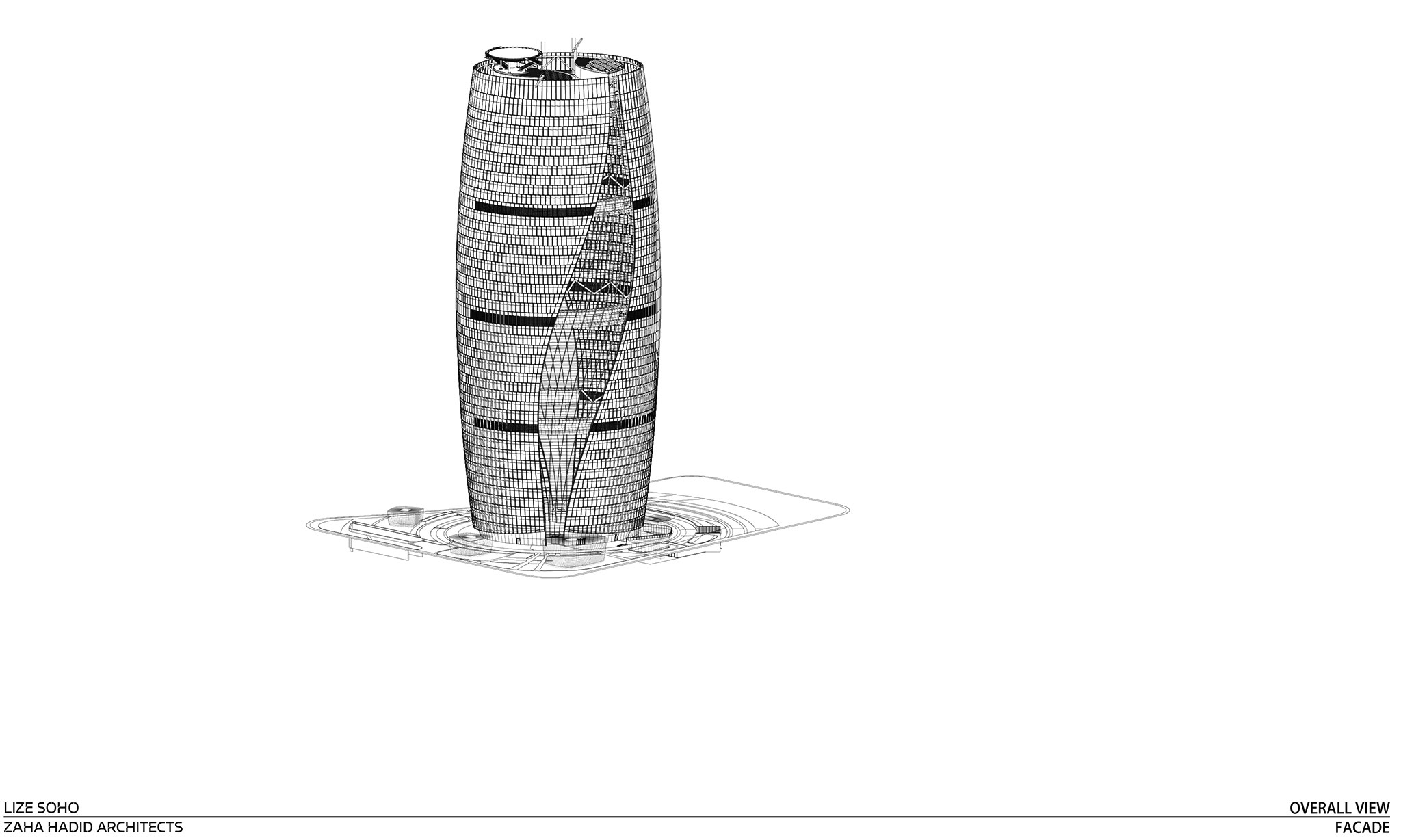

The atrium’s ‘twist’ allows natural light and views of the city from the centre of all floors of Leeza Soho. Sky bridges on structural rings at each refuge/MEP level and a double-insulated glass façade unite the two halves of the tower together within a single cohesive envelope.
The double-insulated, unitised glass curtain-wall system steps the glazing units on each floor at an angle, allowing ventilating registers to draw outside air through an operable cavity when required; creating extremely efficient environmental control for each floor.
The tower provides self-shading for the atrium’s public space below while double-insulated low-e glazing (U=2.0W/m²K; SC=0.4) and envelope insulation (U=0.55 W/m²K) maintain a comfortable indoor environment in Beijing’s extreme weather conditions.
At the forefront of 3D Building Information Modelling (BIM) in design, construction management and building operations, Zaha Hadid Architects and Soho China have implemented proven technologies to significantly reduce the energy consumption and emissions of their previous project collaborations.
Targeting LEED Gold certification, an advanced 3D BIM energy management system will monitor real-time environmental control and energy efficiency within Leeza Soho, integrating heat-recovery from exhaust air, high-efficiency pumps and fans, chillers and boilers, lighting and controls, in addition to water-collection, low-flow rate fixtures, grey water flushing and landscape irrigation.
Low VOC materials will be installed throughout Leeza Soho to minimise interior pollutants, and when required, high-efficiency filters will remove PM2.5 particles via the air-handling system.
2,680 bicycle parking spaces with lockers and shower facilities are provided. Dedicated charging spaces for electric/hybrid cars are located below ground.
Construction of Leeza Soho will reach its full 207m height in September this year, with the tower’s completion planned for late 2018.
Leeza Soho is the most recent of four project collaborations between Zaha Hadid Architects and Soho China that total 15 million square feet (1.4 million m²) of award-winning office and retail space.
Zhang Xin, CEO of Soho China explained: “China attracts the best talent from around the world. It’s important to work with architects who understand what the next generation requires; connecting communities and traditions with new technologies and innovations to embrace the future.”
