The contrast between the base, black, heavy, and in contact with the access level; and the upper volume, white, light, and used for administrative issues, produce a waterline where relationships between users happen. Inside the building, three patios organises circulations and its running.

Project Synopsis by Sánchez Gil Arquitectos.

The building is located in a residential neighbourhood outlying the east side of the city, on a highly inclined trapezoidal site surrounded, on two of its sides, by a long dividing wall which opens the patios of the perimeter residential buildings. In its lower part, southwards, this building´s borders are a public park and a street for both pedestrian and vehicular access.

The building is lined up with the street and the park, separated from the dividing walls, originating a perimeter garden to improve the privacy of users and the street views in general. The nursery and the event room can be found in the far south which simulates a sculpted garden that combines volumes and buried patios, avoiding competing with the great volume of the administrative building.

The building consists of a black concrete base, taking the access level as a reference, efficiently solving the existing drop. It offers additional facilities such as a nursery, events room, multifunctional rooms, cafeteria and parking. A white volume on the base, L-shaped with 2 and 4 floors, is used for administrative functions.

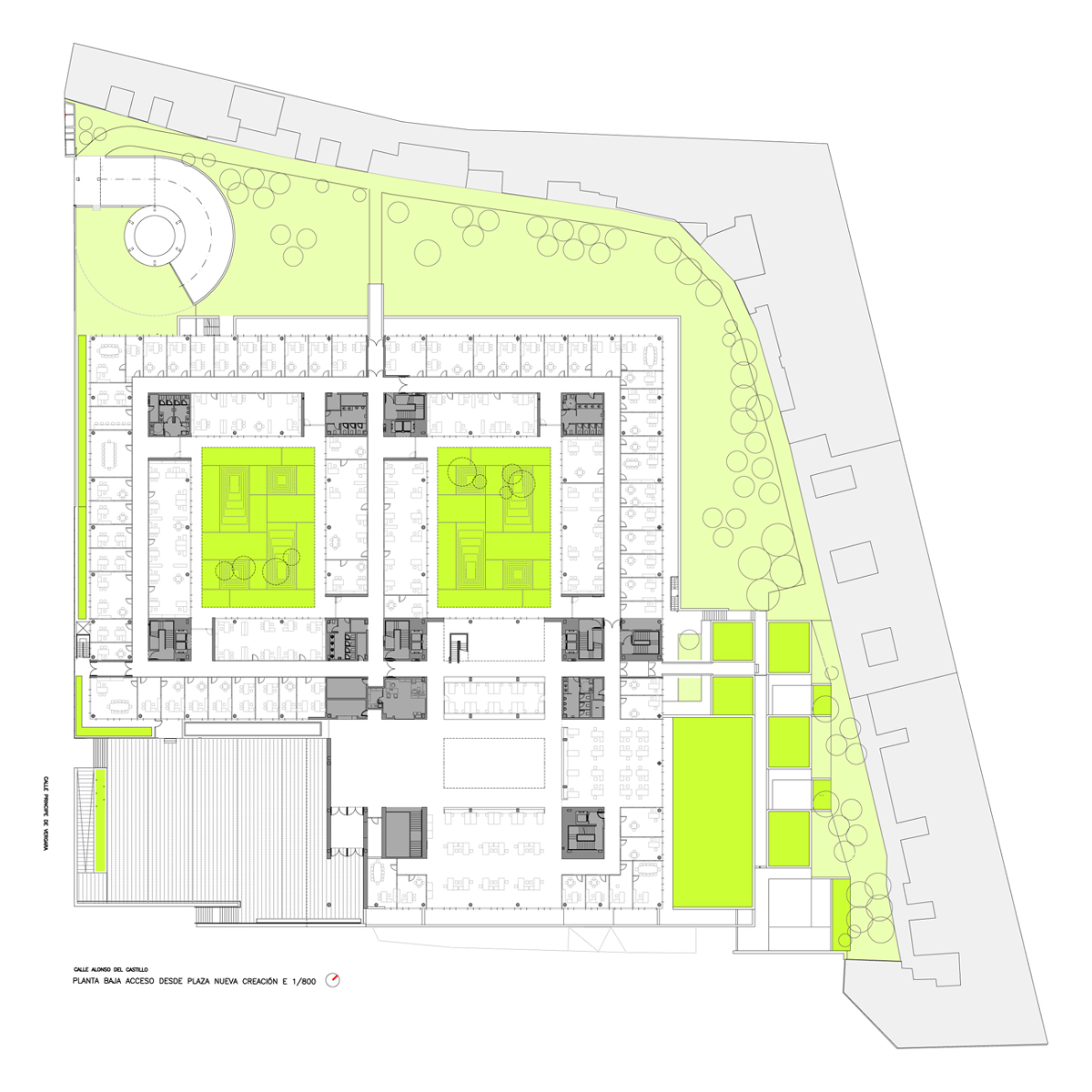

The building follows a cloistral model and is organized around three patios, the smallest (2x3m) located at the entrance body, covered at the ground floor by a big skylight, giving form to the main foyer, and the other two plant-lined patios giving shape to the tall body (3x4m). Around them, a ring circulation is proposed so that offices, with an opaque screen, are located at the exterior perimeter, while glazed clear administrative areas are facing the patios bringing light and space to the corridor. At the inner corners, framing administrative areas, humid and communications nucleus are distributed.

Read more
Read less

More information

Label
Architects
Text
Sánchez Gil Arquitectos. Lead Architects.- Emilio Sánchez Gil, Fernando Sánchez Cuadrado, Emilio Sánchez Cuadrado.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project team
Text
Antonio García Villanueva, Frederick Posse, Stephanie Zimmerman, Monika Nerud, Jorge Garrudo.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Technical team.- José Francisco González Hernández, José Luis Benavides, José Antonio Sánchez Nieto.
Structural engineering.- Valeriano Diego, Fechor.
Mechanical and electrics engineering.- Juan Carlos Cancho.
Telecommunications engineering.- Javier Mancebo.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Client
Text
Castilla y León Sociedad Patrimonial, S.A.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text
UTE Dragados, Rio Vena, Arturo Bernal, Bernardo Díaz.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
30,000 sqm.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Competition.- 2007.
Project.- 2007-2008.
Construction start.- 2010.
Completed.- 2012.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
Calle Abrahan Zacut, Principe de Vergara, Salamanca. Spain.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Budget
Text
€ 24.000.000.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
Text
Montse Zamorano, Fernando Sánchez Cuadrado.
+ + copy Created with Sketch.
- + copy Created with Sketch.

Sanchez Gil Arquitectos is an architecture and urbanism office, directed by Emilio Sánchez Gil, Fernando Sánchez Cuadrado and Emilio Sánchez Cuadrado. They work on residential designs, both for private and public projects, as well as administrative, educative, technological or healthcare buildings.

Emilio Sanchez Gil is architect (ETSAM) since 1970, and graduated in the AA in Urban Planning since 1973. In 1975 he got the PhD (ETSAM), the same year when he started his teaching career in the same school as urbanism professor. Since his beginnings, he combines the profesional practice with teaching at the ETSAM. Since 1995, Emilio and Fernando Sánchez Cuadrado colaborate at the office, getting into the team in 2002 and 2004, respectively.

2011: 1st award "Concurso Centro de investigación de recursos biológicos para la Universidad de Salamanca".
2008: 1st award "Concurso Centro de salúd y gerencia de atención primaria el el barrio de la Prosperidad de Salamanca".
2006: 1st award "Concurso Edificio de usos múltiples para la Junta de Castilla y León en Salamanca".
2005: 1st award "Concurso restringido de ideas EMVS-31 viviendas en el barrio de Vallecas de Madrid".
2004: 2nd award "Concurso EMVS-Embajadores-Antracita (Madrid)".
2003: 1st. award "Concurso para el Edifico Policlínico de Odontología para la Universidad de Salamanca".
2002: 1st. award "Concurso para un Edificio Polivalente para el Hogar de la Mujer de Santa Marta de Tormes (Salamanca)".
1986: 1st. award "Concurso Nacional de ideas para la Facultad de Geografía e Historia para la Universidad de Salamanca".

Read more
Published on: July 2, 2013
Cite: "Administrative multifunctional building for Regional Government of Castilla y León by Sanchez Gil Arquitectos" METALOCUS. Accessed
<http://www.metalocus.es/en/news/administrative-multifunctional-building-regional-government-castilla-y-leon-sanchez-gil-arquitectos> ISSN 1139-6415
