Architecture firm Níall McLaughlin Architects was commissioned to design The International Rugby Experience, a new cultural institution around the game of Rugby. Located in Limerick, known as the "City of Churches", this ambitious project seeks to revitalize the city centre, adding a new attraction and forging links with Munster rugby.

The 7-storey building cleverly embodies the sport in imposing community-centred design and offers an interactive experience for visitors.

A grand entrance portico facing the main street creates a public space, where visitors and rugby fans on match days can gather. In the basement, there is a flexible space for exhibitions, education and events in the basement. On the ground floor, there is a commercial area and on the first floor, a cafeteria, both of them next to a double-height entrance hall. The building is topped by a public hall that offers panoramic views of the city and acts as a beacon, being visible from afar.
The building designed by Níall McLaughlin Architects is located on the main shopping street in the city centre, on the edge of a conservation area within Limerick’s Georgian Quarter. When projecting, the verticality and scale of the churches and civic centers of the Georgian era were taken as a reference, as the building is located on a very narrow plot and required a lot of surface area, creating a rugby “cathedral”.

Both inside and out, there is constructive honesty that tells how the structure of the building is through the brick and concrete details. The facades are given a sculptural character by means of prominent brick pillars, interrupted by horizontal pieces of concrete that reflect the slabs on the outside. The windows open adapting to the interior program of the building.


The International Rugby Experience by Níall McLaughlin Architects. Photograph by Nick Kane.


The International Rugby Experience by Níall McLaughlin Architects. Photograph by Nick Kane.


Project description by Níall McLaughlin Architects

The International Rugby Experience is a new cultural institution and visitor experience to honour the worldwide game of rugby. Located in the heart of Limerick, this ambitious project seeks to reinvigorate the city centre, complement the existing local arts and heritage attractions and forge links with Munster rugby.

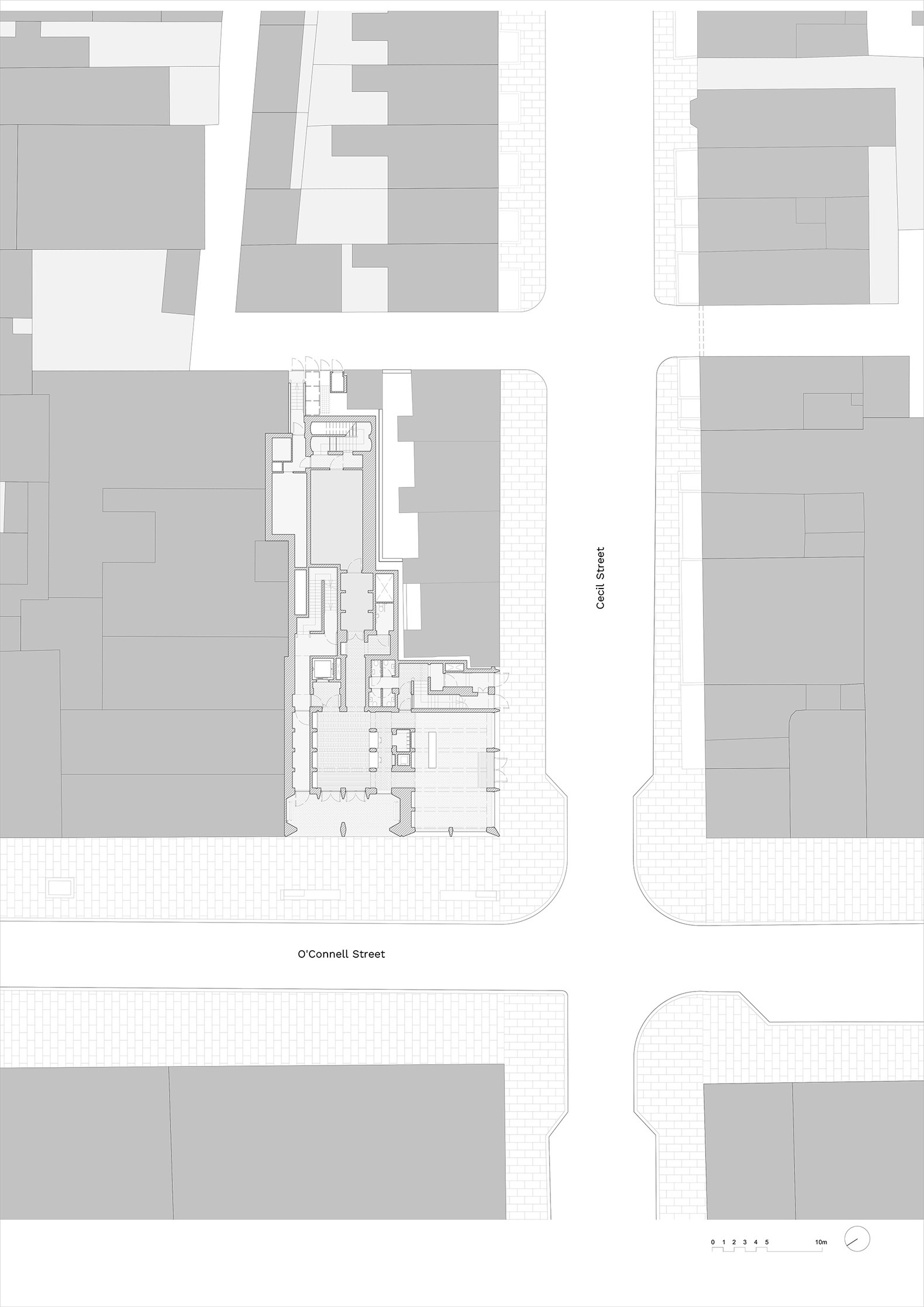

The building is located on O’Connell Street which is the main shopping street in the city centre. Its prominent corner site sits on the edge of a conservation area within Limerick’s Georgian Quarter. On such a tight urban site, the challenge lay in creating a building with capacity for the intended use but that sits comfortably in the context of the finer grain of the Georgian Quarter. The design approach was to consider this as a special civic building rather than a townhouse and the architectural proposals were developed through research into historic civic buildings set in Georgian streetscapes, referencing the scale of churches and civic halls. We sought to create a Cathedral to Rugby in the “City of Churches”, as Limerick is known.


The International Rugby Experience by Níall McLaughlin Architects. Photograph by Nick Kane.



The International Rugby Experience by Níall McLaughlin Architects. Photograph by Nick Kane.

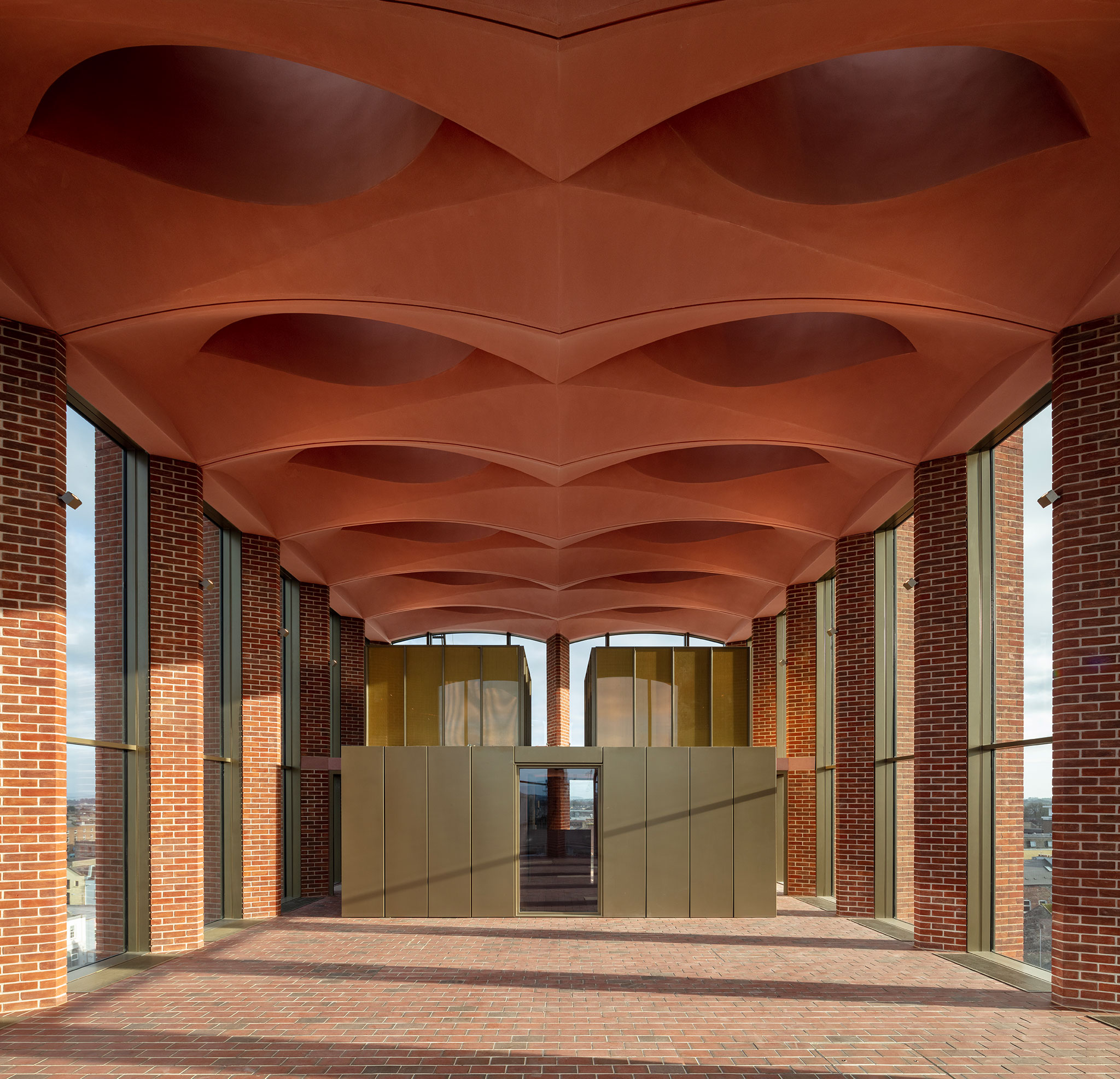

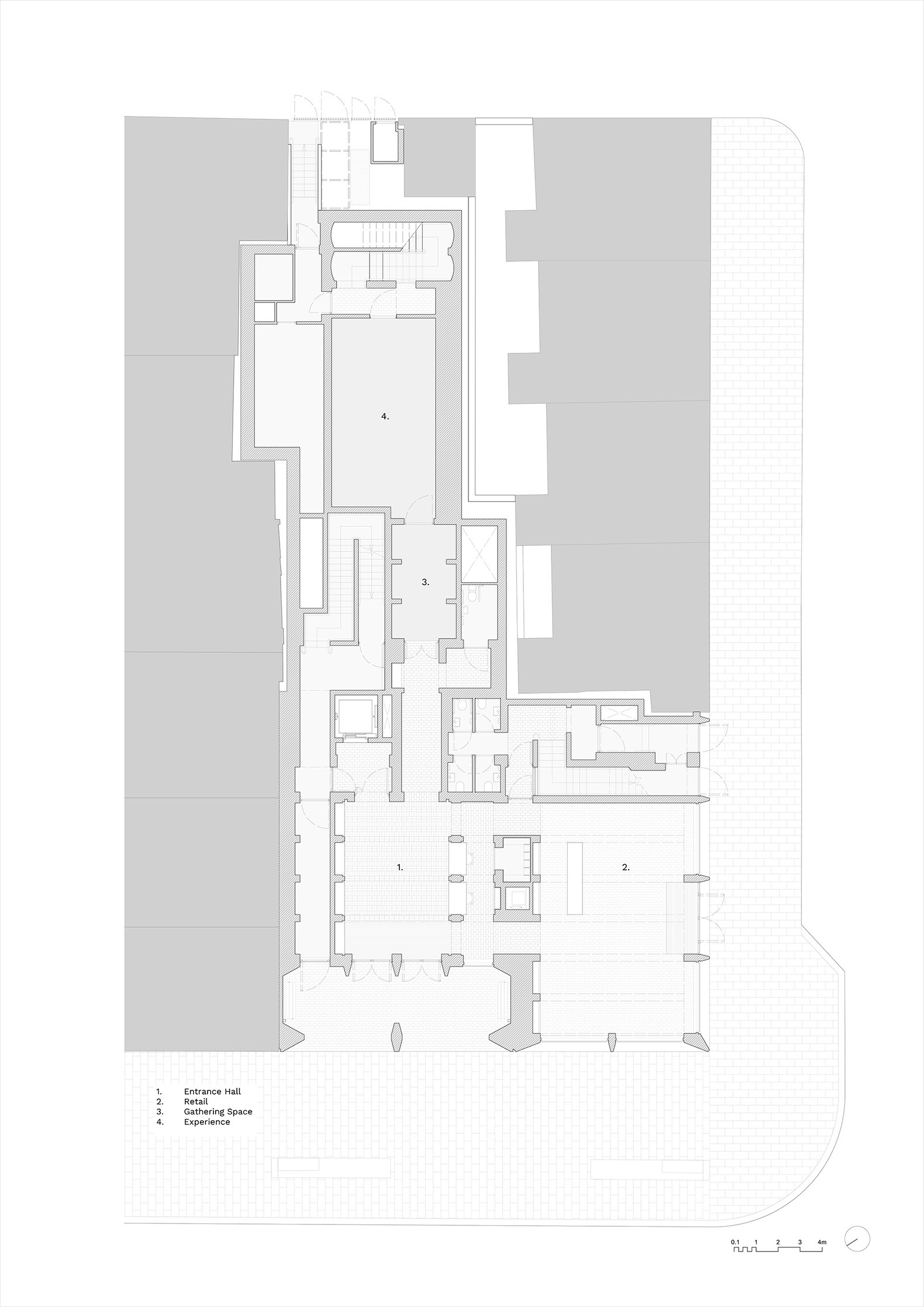

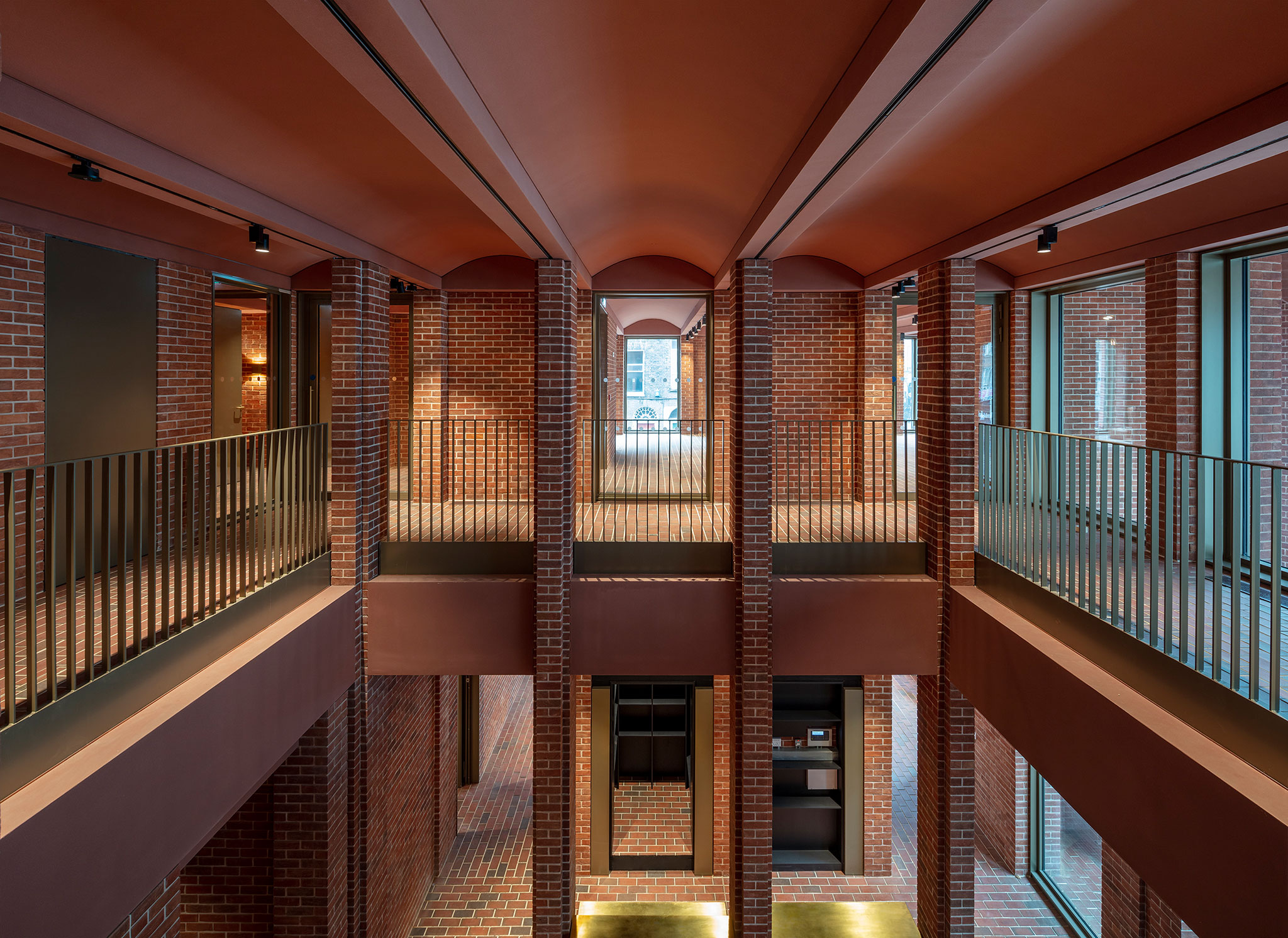

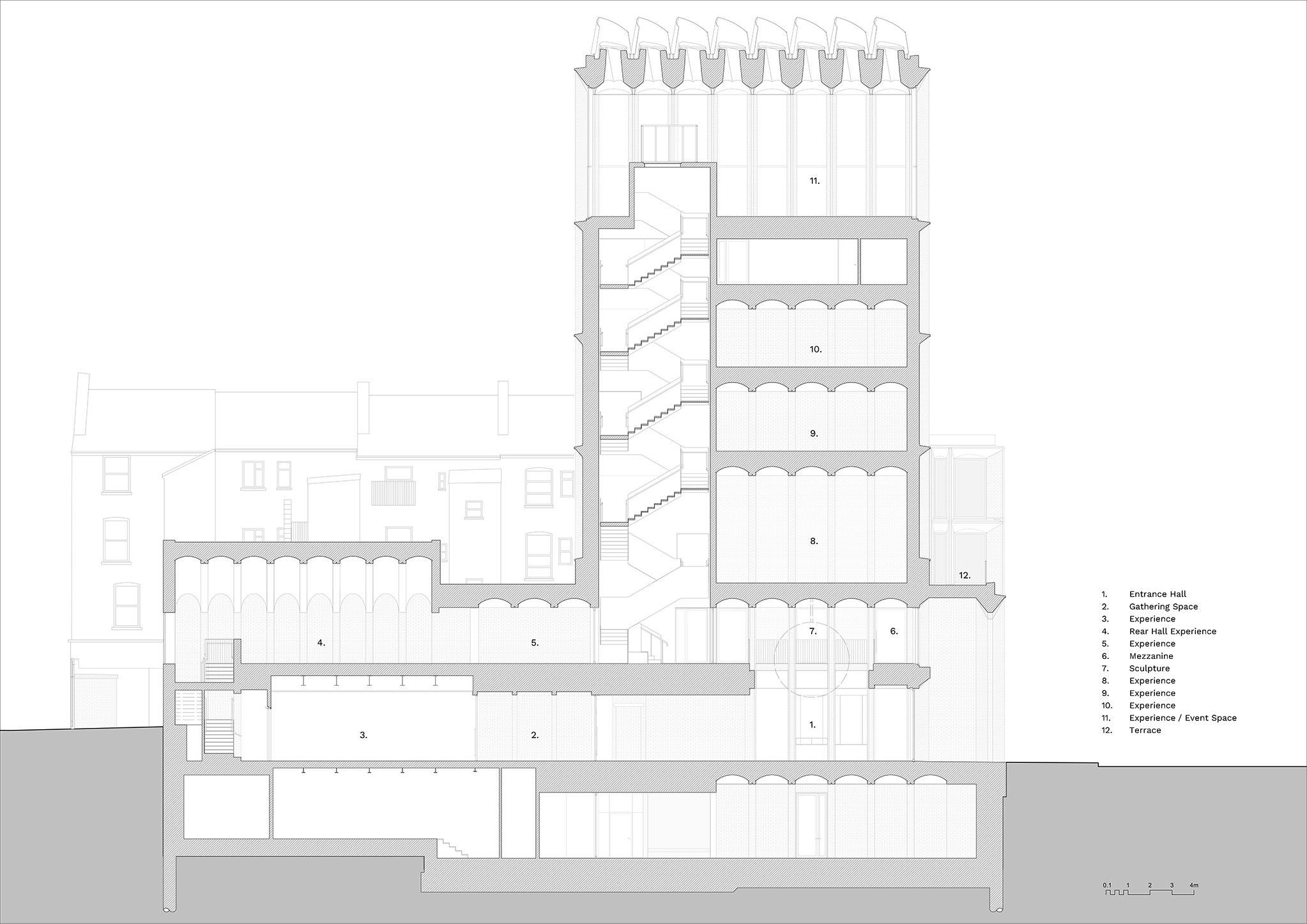

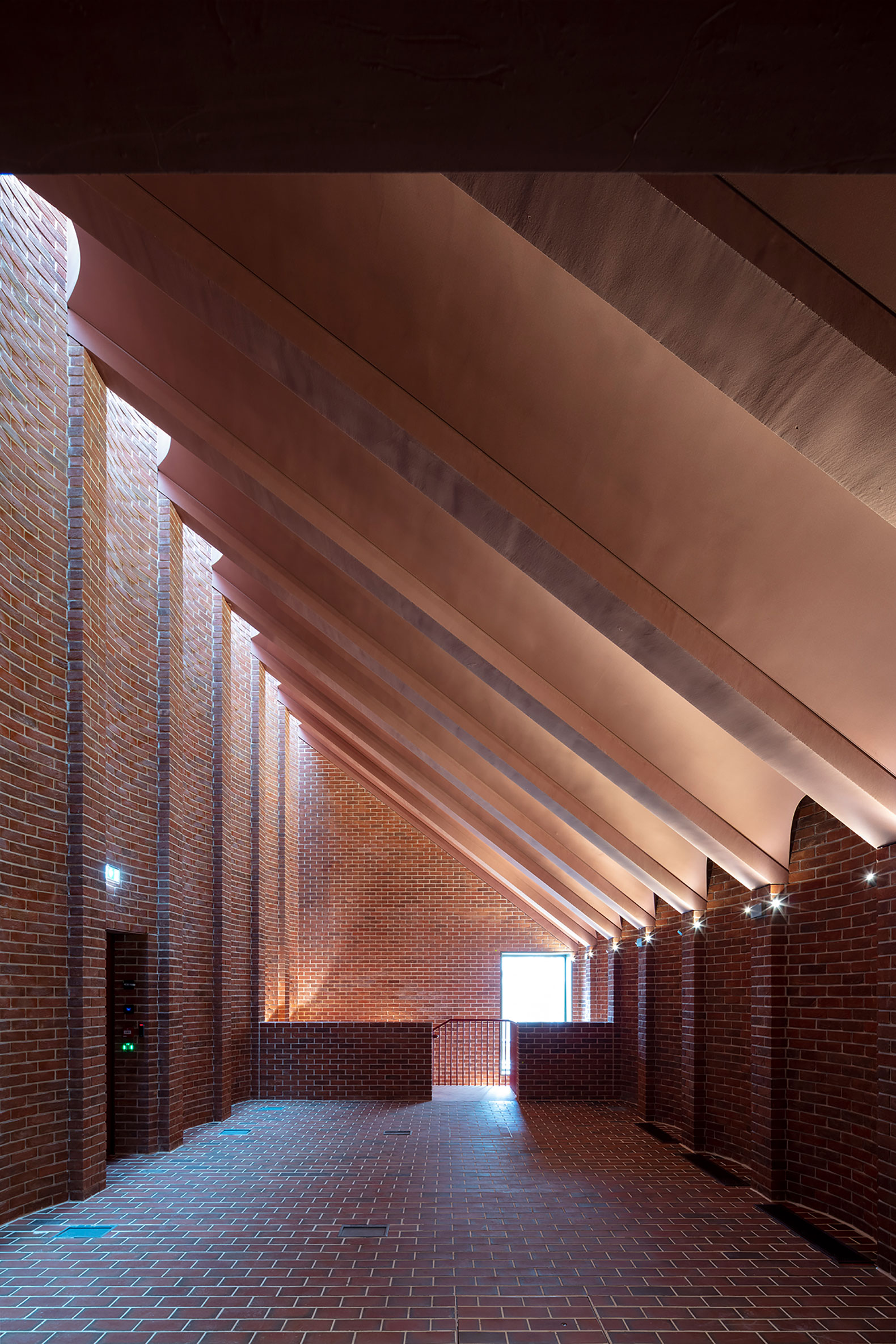

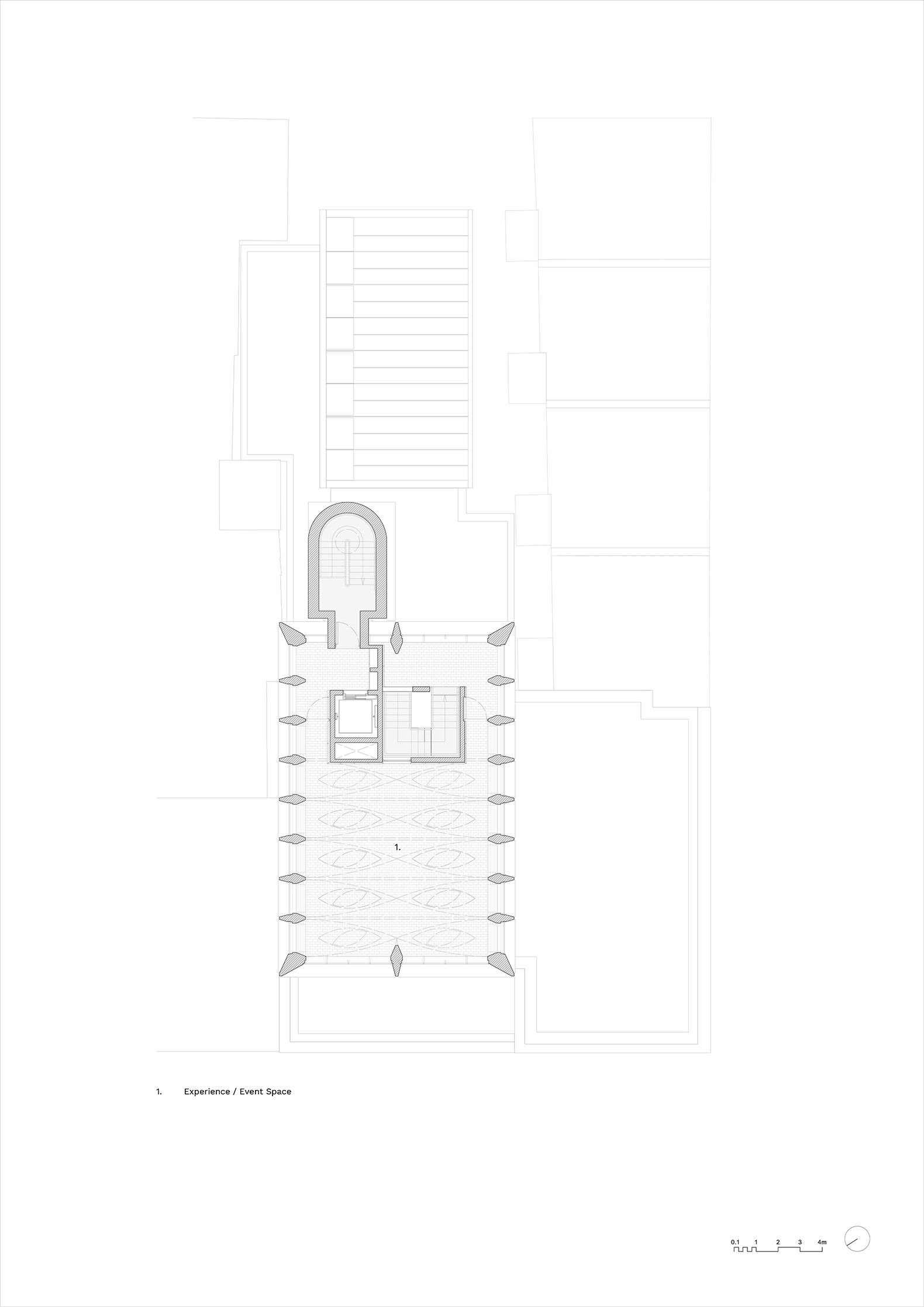

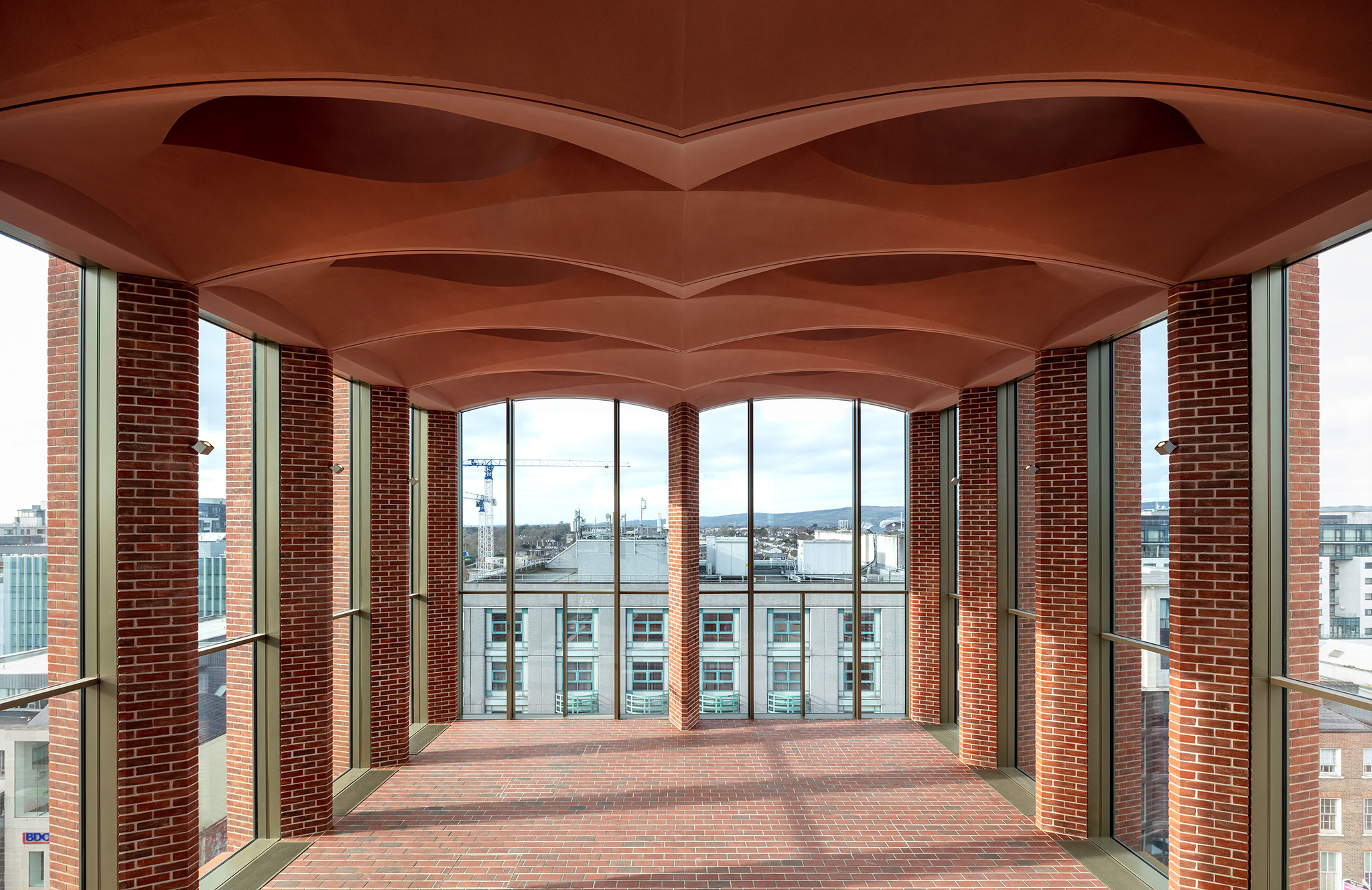

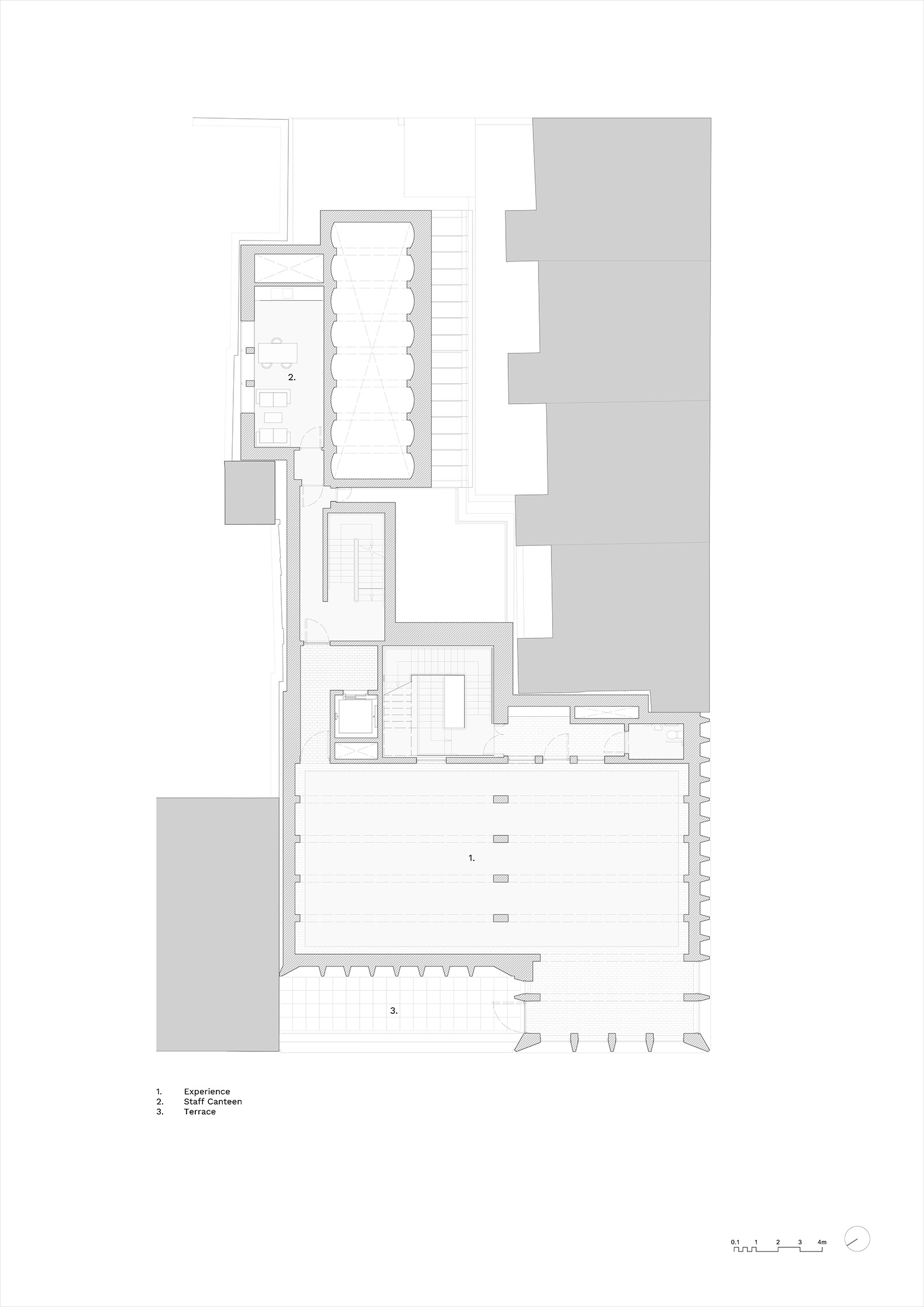

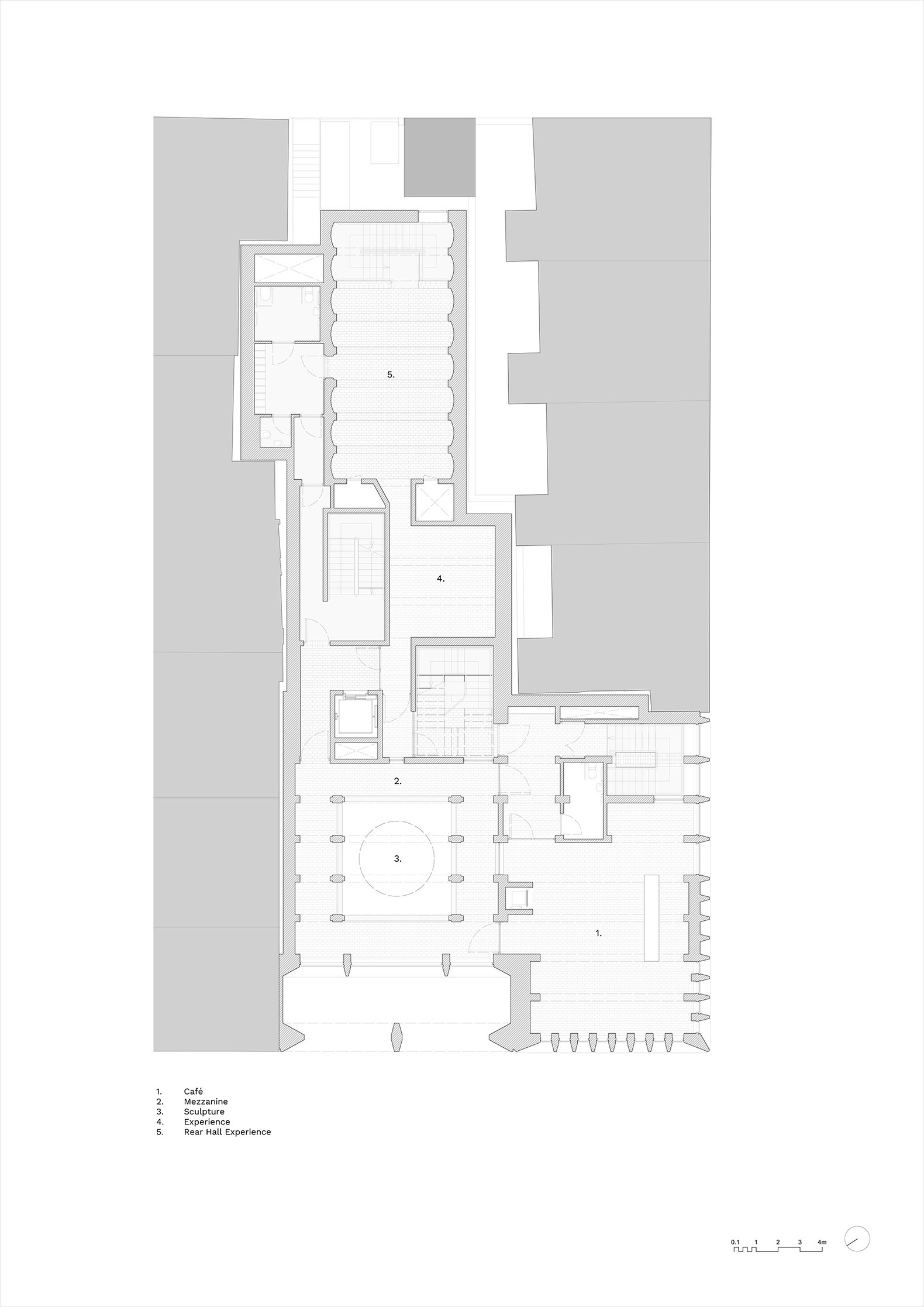

The 7-storey building provides state of the art, interactive visitor experience, ground floor retail area and first-floor café adjacent to a double-height entrance hall, and flexible exhibition, education and event space in the basement. It is crowned with a public hall at the top that offers panoramic views and acts as a beacon, visible from afar. A grand entrance portico addresses the busy main street, providing shelter and creating a public space below where visitors gather and fans can meet on match days.

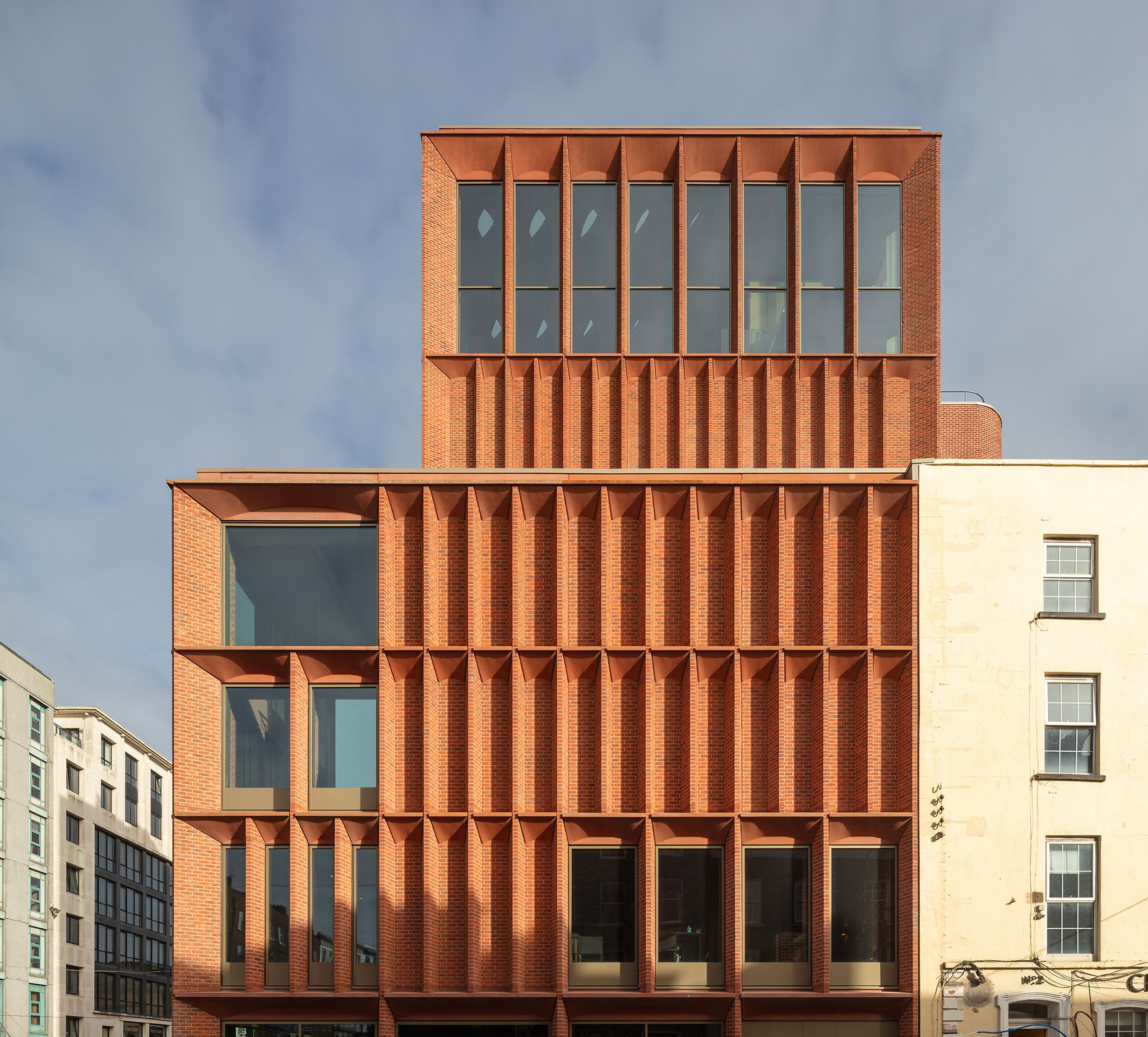

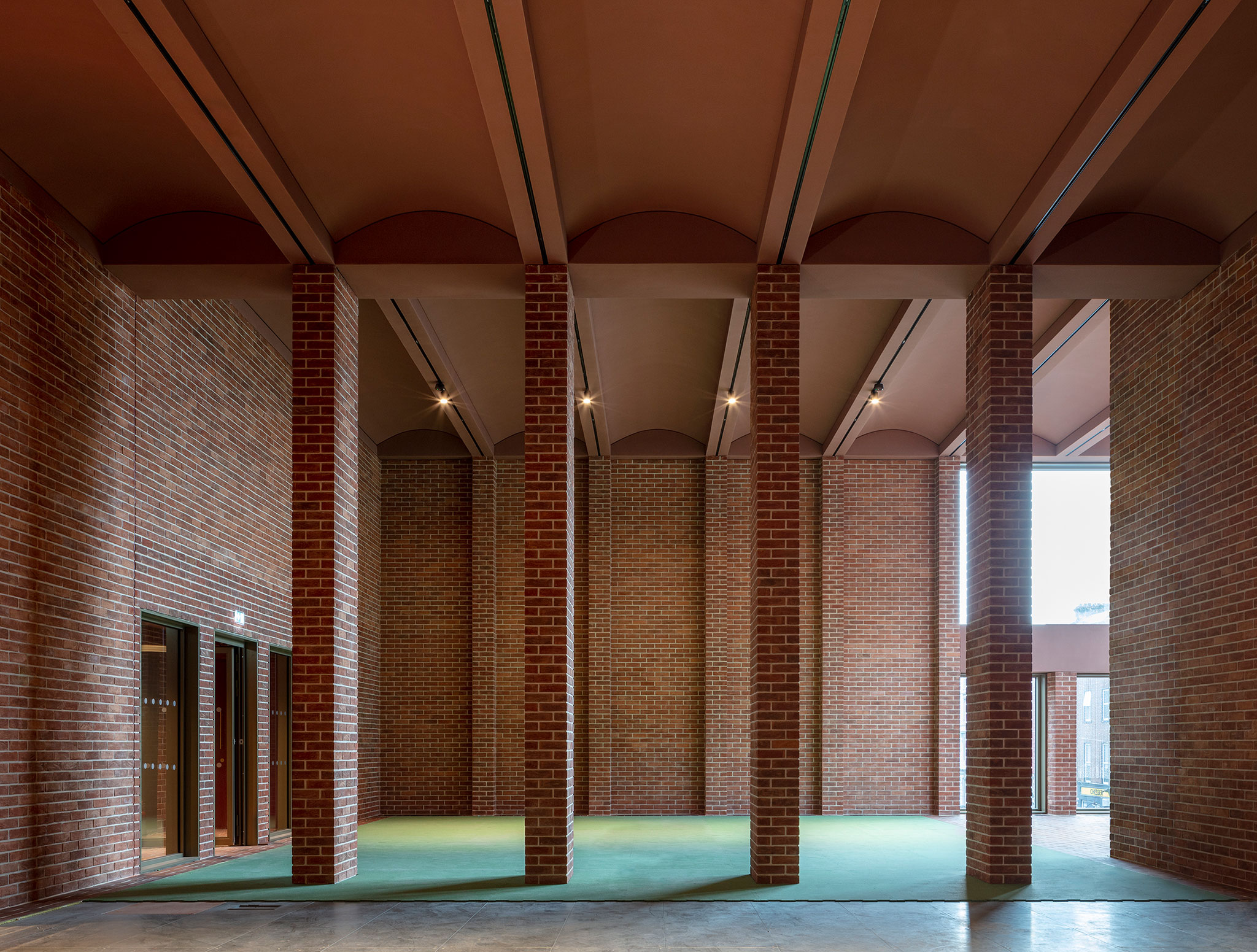

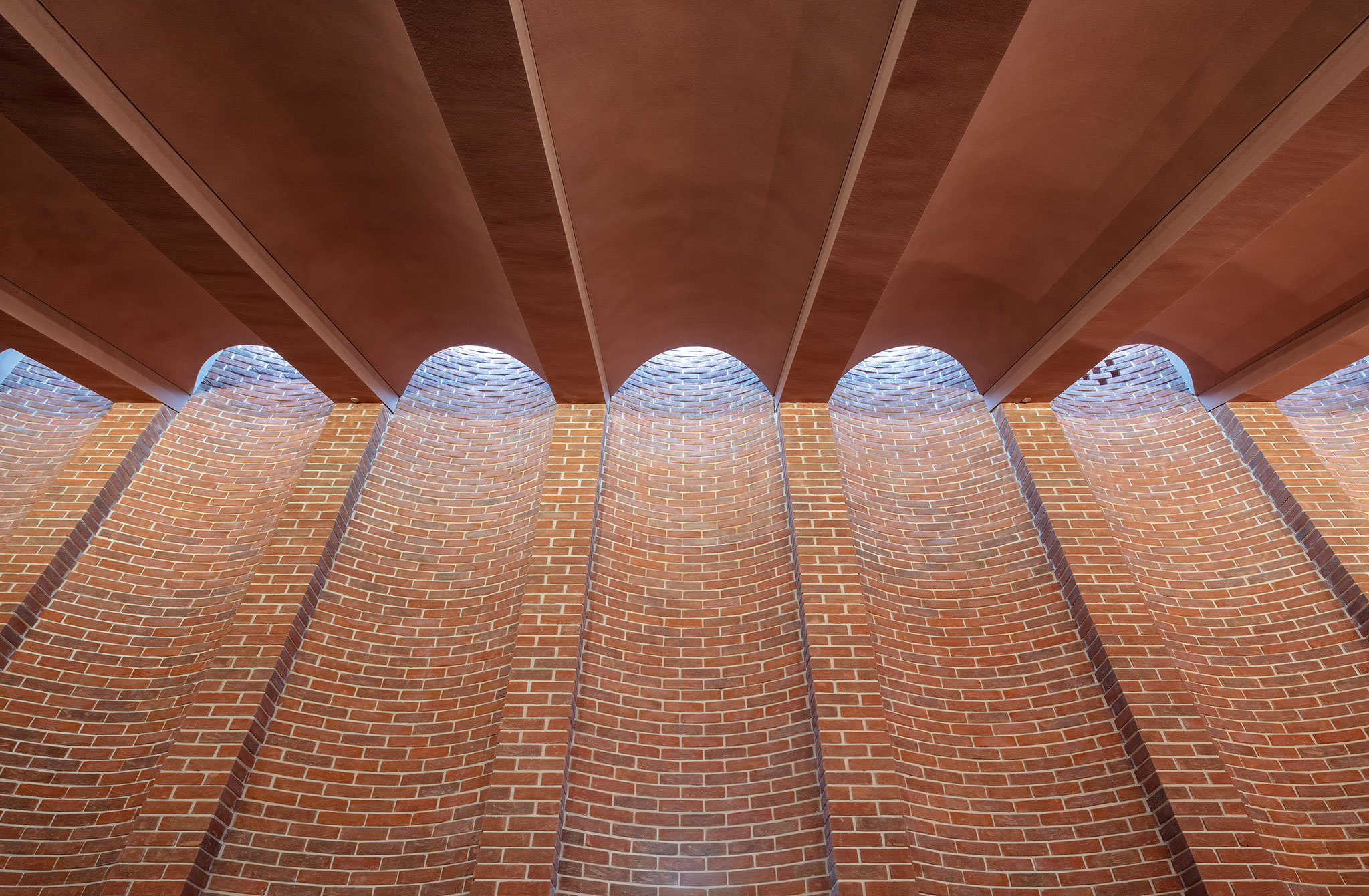

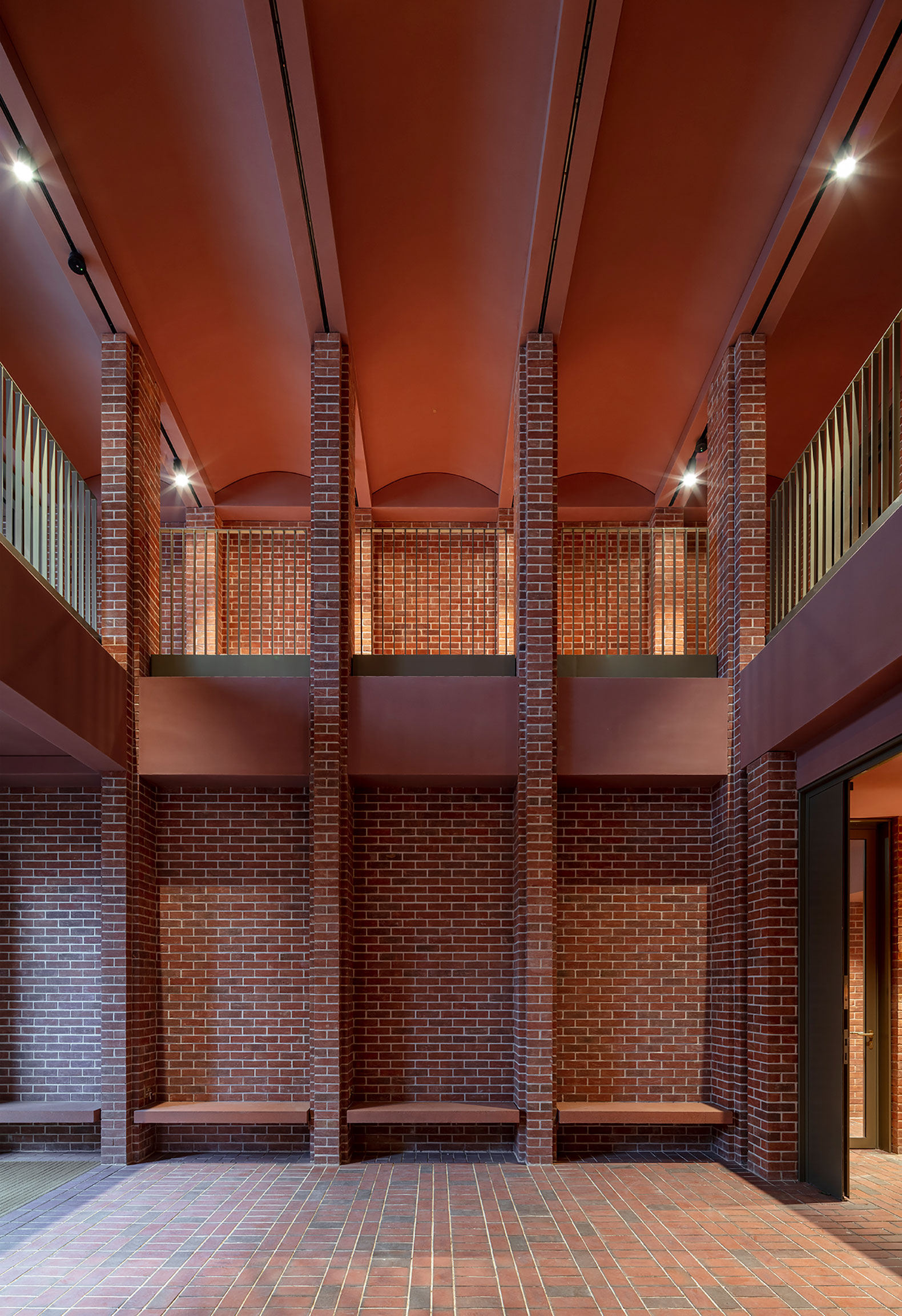

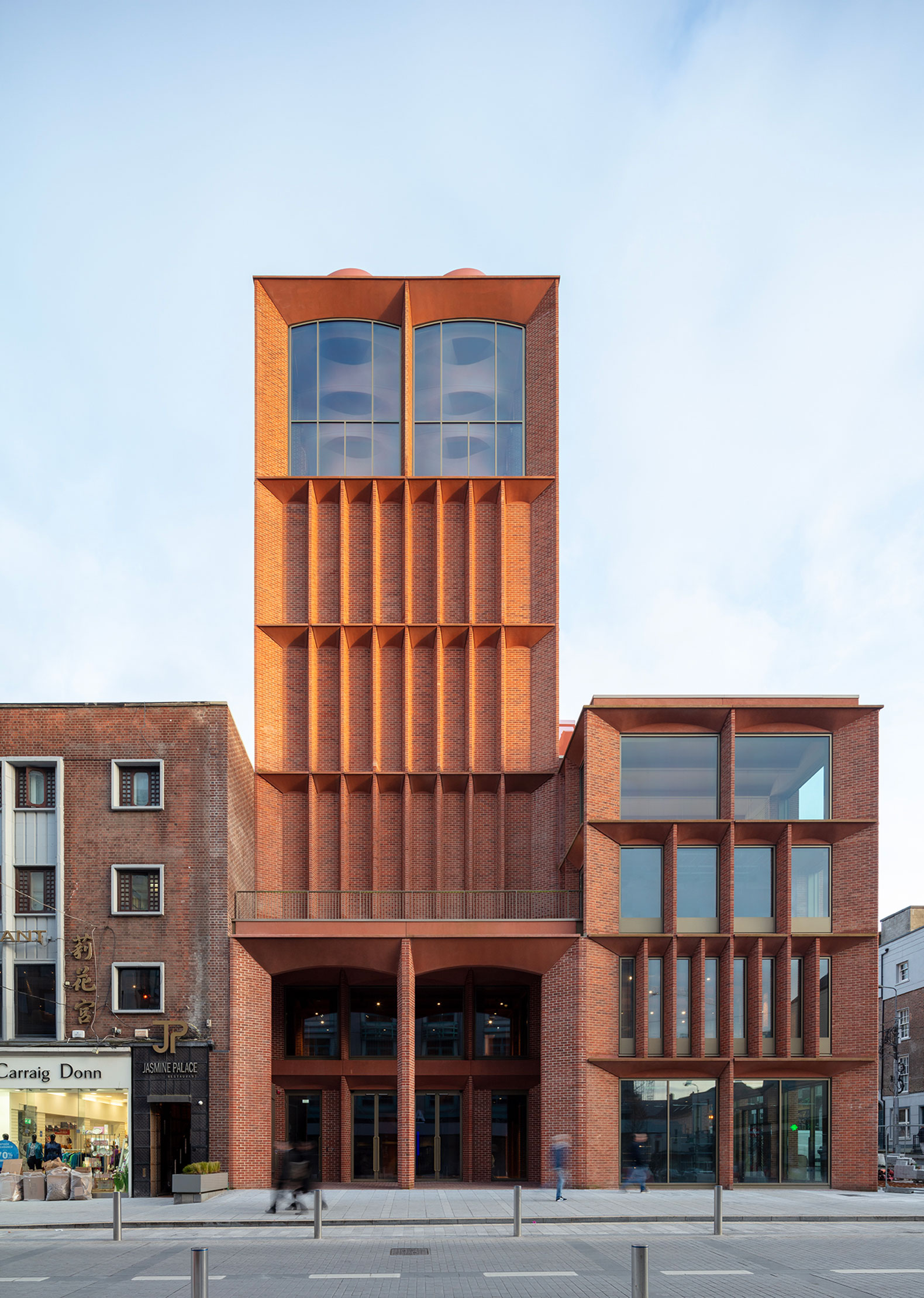

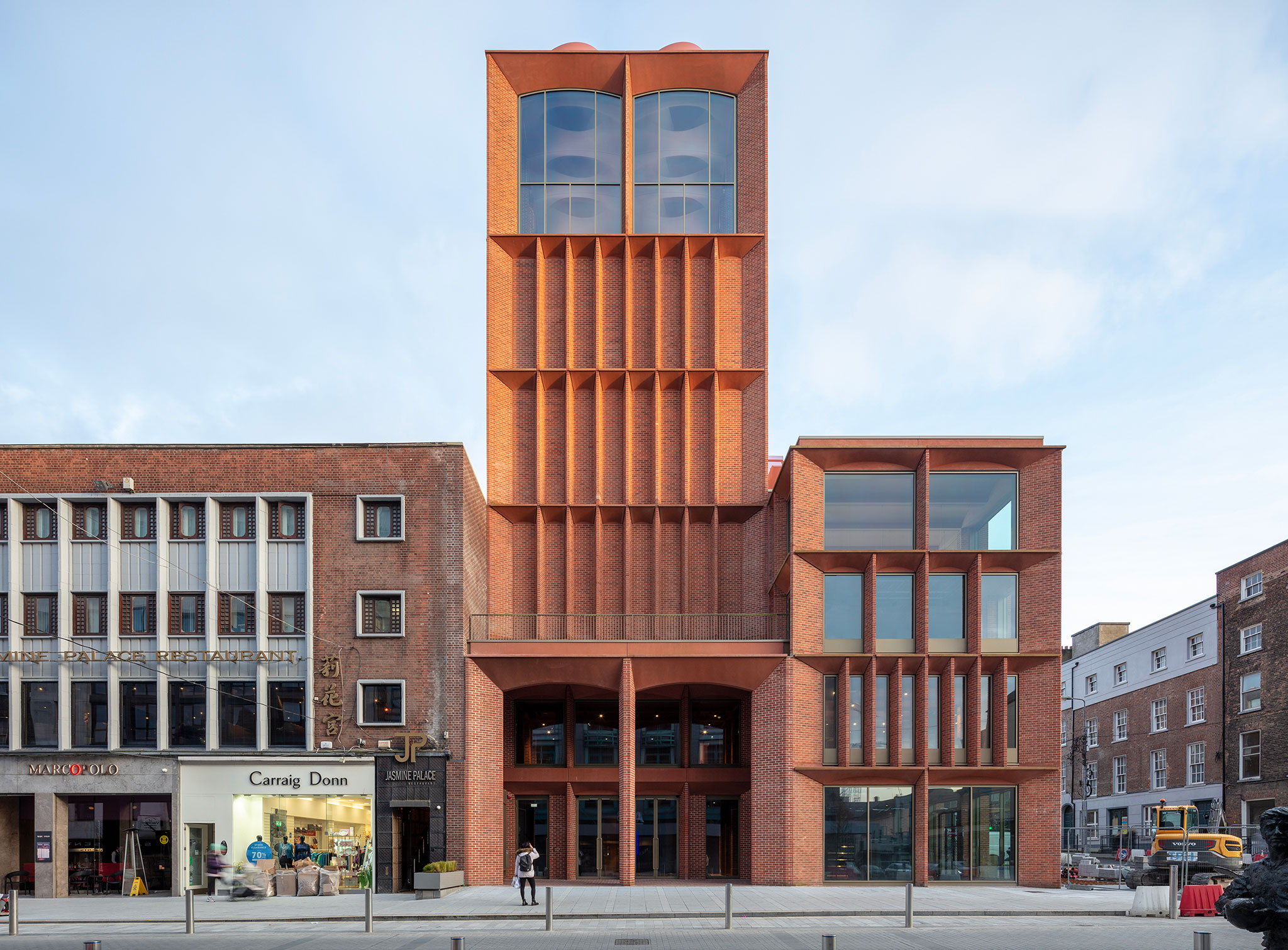

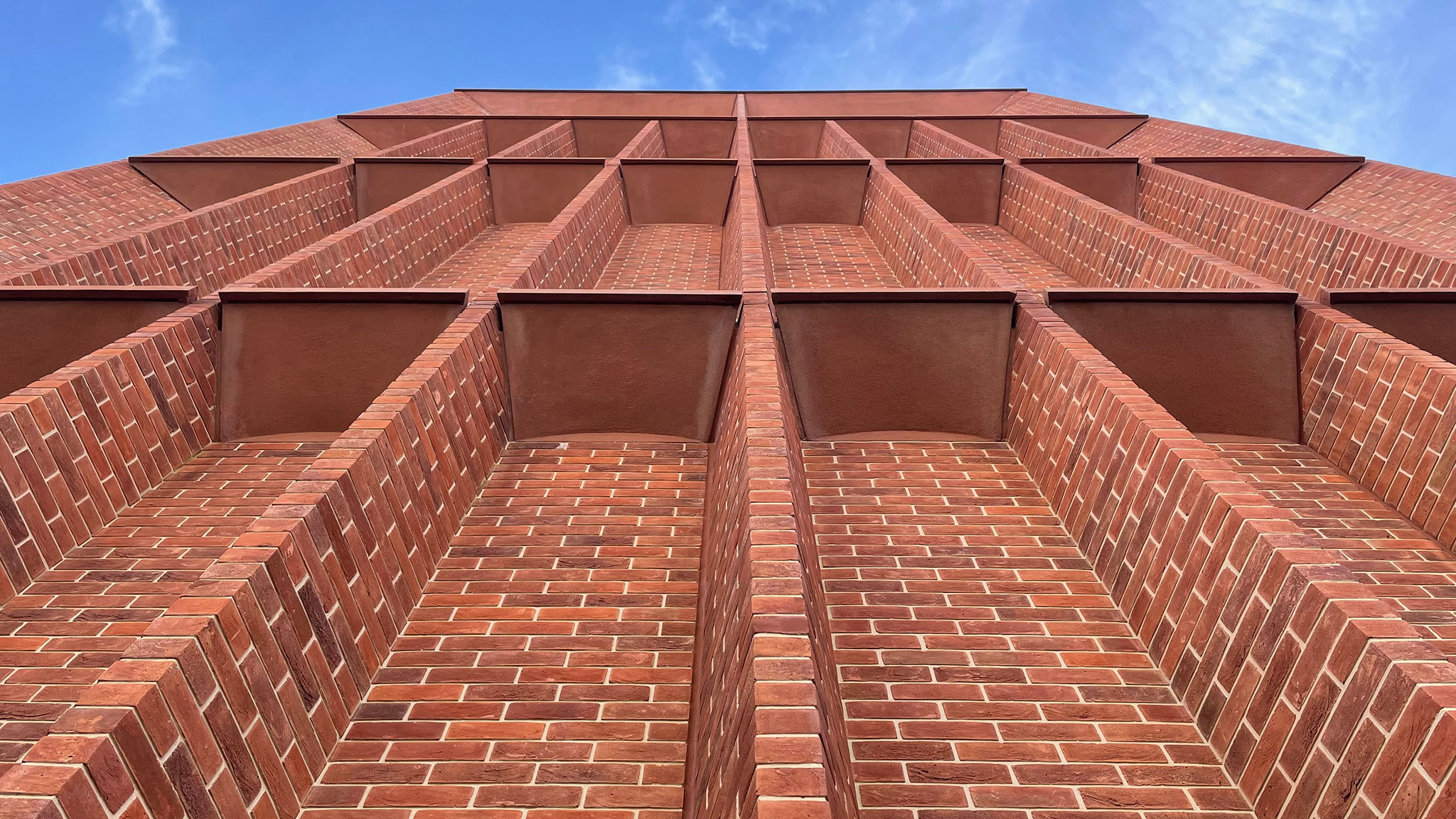

Both inside and out, structural forces are expressed through brick and concrete detailing to create a building that reflects some of the forces found in the game of rugby. The structural and brick expression provide a tangible link to the building’s function and will be key to the visitor experience. The façades are given a sculptural quality through the articulation of deep vertical brick piers, with horizontal pre-cast concrete elements spanning between these, creating a series of recessed bays. The proportions of these bays complement the surrounding Georgian streetscape while the balance of openings and the solid wall is arranged to suit the building’s interior functions.


The International Rugby Experience by Níall McLaughlin Architects. Photograph by Nick Kane.

Níall McLaughlin Architects have worked closely with exhibition designer Event Communications to ensure a successful marriage between the architecture of the interiors, the fit-out and the interactive experience. In addition, a bespoke installation hanging above the main entrance was designed in collaboration with millimetre to provide visual interest on arrival and at the end of the visitor experience, and as a fitting tribute to the sport of rugby across the world.

More information

Label
Architects
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Main Contractor.- Flynn.
Mechanical Sub-Contractor.- DMG Engineering Ltd.
Electrical Sub-Contractor.- Pure Electrical Ltd.
Planning Consultant.- Town & Country Resources.
Project Manager & QS.- Engage PMS.
Heritage Consultant.- Consarc.
Structural & Civil Engineer.- Punch Consulting.
M&E Engineer.- Metec Consulting Engineers.
Experience Designers.- Event Communications.
Fire Consultant.- CK Fire Engineering.
PSDP.- Aegis Safety Management.
Assigned Certifier.- Punch Consulting.
Daylight Consultant.- BRE.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Client
Text
International Rugby Experience.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
2,110 m².
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Completion.- October 2022.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
O'Connell Street, Limerick. Ireland.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Manufacturers
Text
Façade.- Techrete.
Bricks.- Charnwood/ Michelmersh.
Quarry Tiles.- Ketley Brick.
Ticket Hall Installation.- millimetre.
Glazing Systems.- Alutec Facades.
Internal Doors & Screens.- The KCC Group.
Metalwork/ Stairs.- Plant & Engineering Services.
Precast Stairs.- Feecast.
Formwork.– Peri Ltd.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
Text
+ + copy Created with Sketch.
- + copy Created with Sketch.

Niall McLaughlin was born in Geneva in 1962. He was educated in Dublin and received his architectural qualifications from University College Dublin in 1984. He worked for Scott Tallon Walker in Dublin and London between 1984 and 1989. He established his own practice, Níall McLaughlin Architects, in London in 1990, with a view to designing high quality modern buildings with a special emphasis on materials and detail. Níall won Young British Architect of the Year in 1998, was one of the BBC Rising Stars in 2001, and his work represented Britain in a US exhibition Gritty Brits at the Carnegie Mellon Museum.

Niallʼs designs have won many awards in the UK, Ireland and the US; including an RIAI award for Best Building in the Landscape and the RIBA Stephen Lawrence Award, and have featured on the RIBA Stirling Shortlist 2013 & 2015. Niall is Professor of Architectural Practice at University College London; was a visiting professor at the University of California Los Angeles from 2012-2013 and was appointed Lord Norman Foster Visiting Professor of Architecture, Yale University for 2014-2015. He acted as chair of the RIBA Awards Group from 2007 to 2009.

Niall McLaughlin has a particular interest in the complexities of designing for dementia. He collaborated extensively with the Alzheimerʼs Society of Ireland to conceptualise, design and inhabit their first new building, the multi-award-winning Alzheimerʼs Respite Centre in Dublin. Niall has given numerous lectures on the subject, including to the Commission for Architecture and the Built Environment in 2010, and at The University of Strathclyde Specialist Dementia Centre in 2013. He was invited to present to the All-Party Parliamentary Group at the House of Lords on Housing and Care for Older People in 2014, and was Convenor of the 2015 RIBA Research Conference on Ageing.
