New faculty of medicine of the Campus Piracicaba in Universidade Anhembi Morumbi by KAAN Achitecten
13/06/2018.
[Piracicaba] Brazil
metalocus, JUDIT OTERO
metalocus, JUDIT OTERO
Description of project by KAAN Architecten
Both buildings have been driven by the same design choices: to create an elegant yet strong architectural identity for the campuses of the Universidade Anhembi Morumbi through a non-scale approach to the representative façades, providing the students and the institution with a generous central common space that promotes social interaction and responds to the hot Brazilian climate of these regions by allowing greater circulation of natural air.

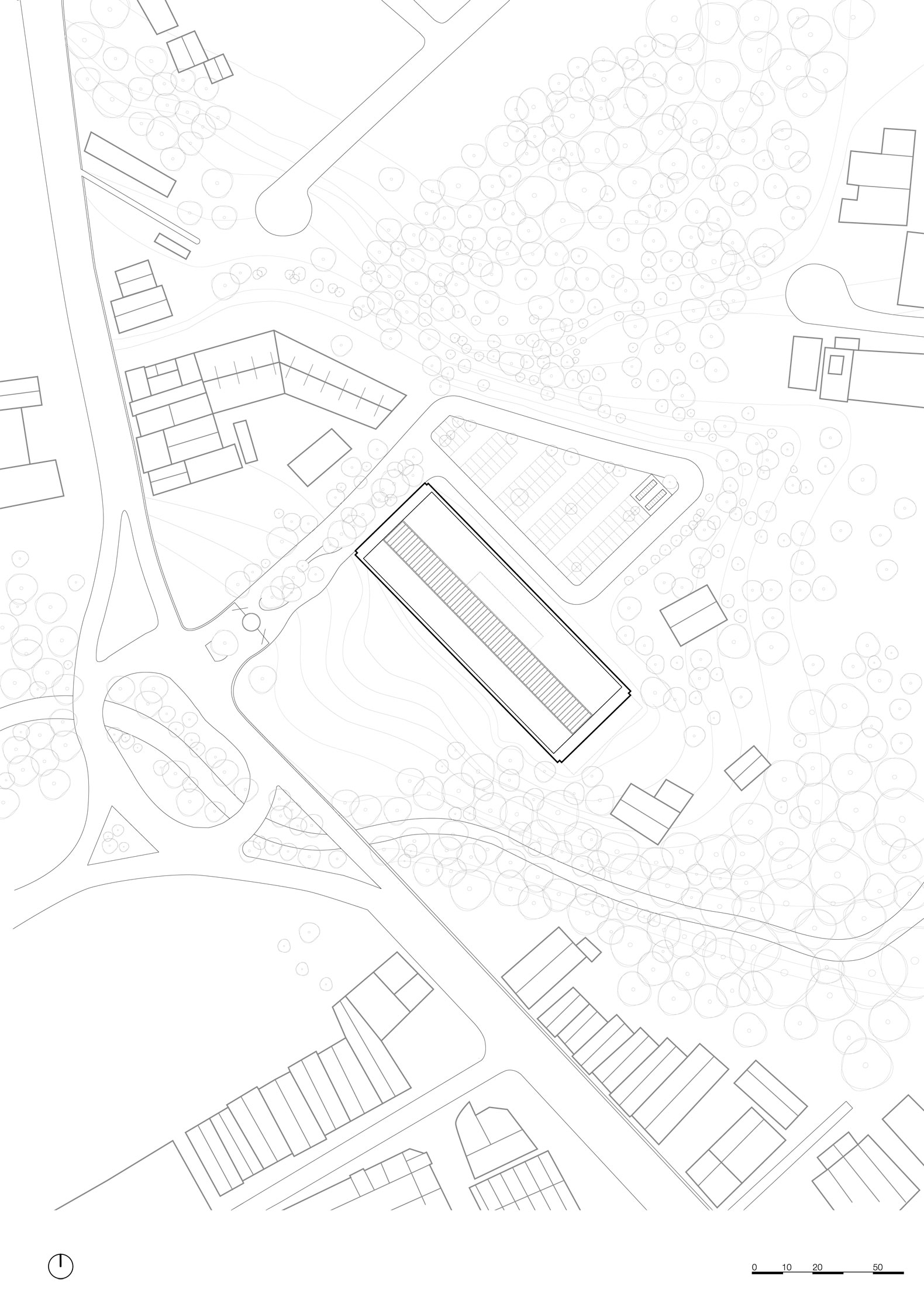

Located in proximity to a main road junction, the future campus in São José dos Campos stands like a modern day Acropolis on an elevated plot, which creates isolation and the ideal conditions to turn it into a new reference point amid the dense urban fabric. In Piracicaba, the new building occupies a plot along a secondary urban expansion axis in the southern part of the city.
By optimizing the topographical characteristics of their areas and thanks to the balanced façade geometries, both projects are landmarks that firmly and visually open themselves to the city, giving the University a recognizable position within the architectural panorama.

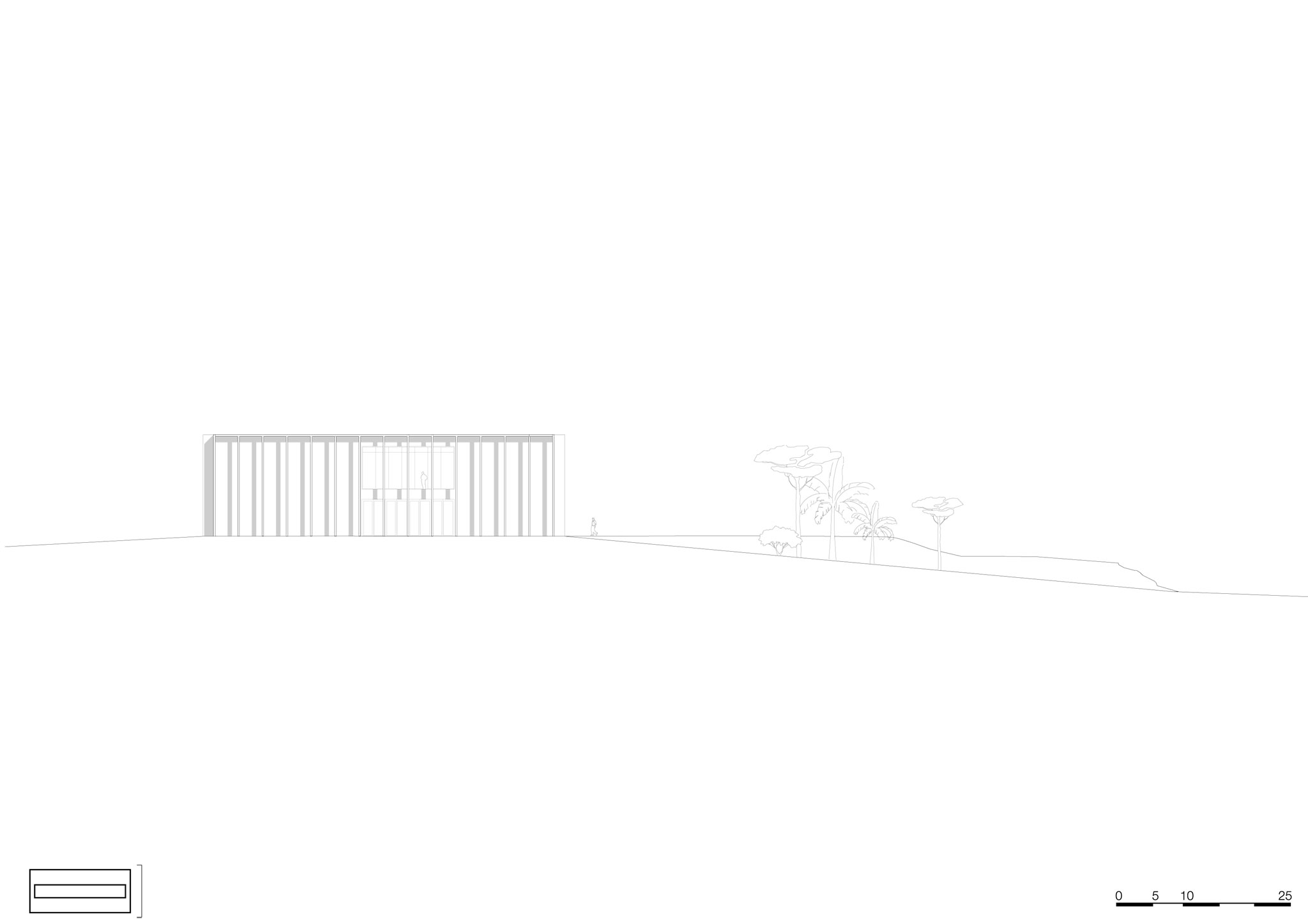

The buildings have different volumetric proportions. São José dos Campos encompasses a more compact structure and consists of three floors with a total area of 5.300 sqm, while Piracicaba, is horizontally developed and lies on the slope of the surrounding landscape, directly dialoguing with it.

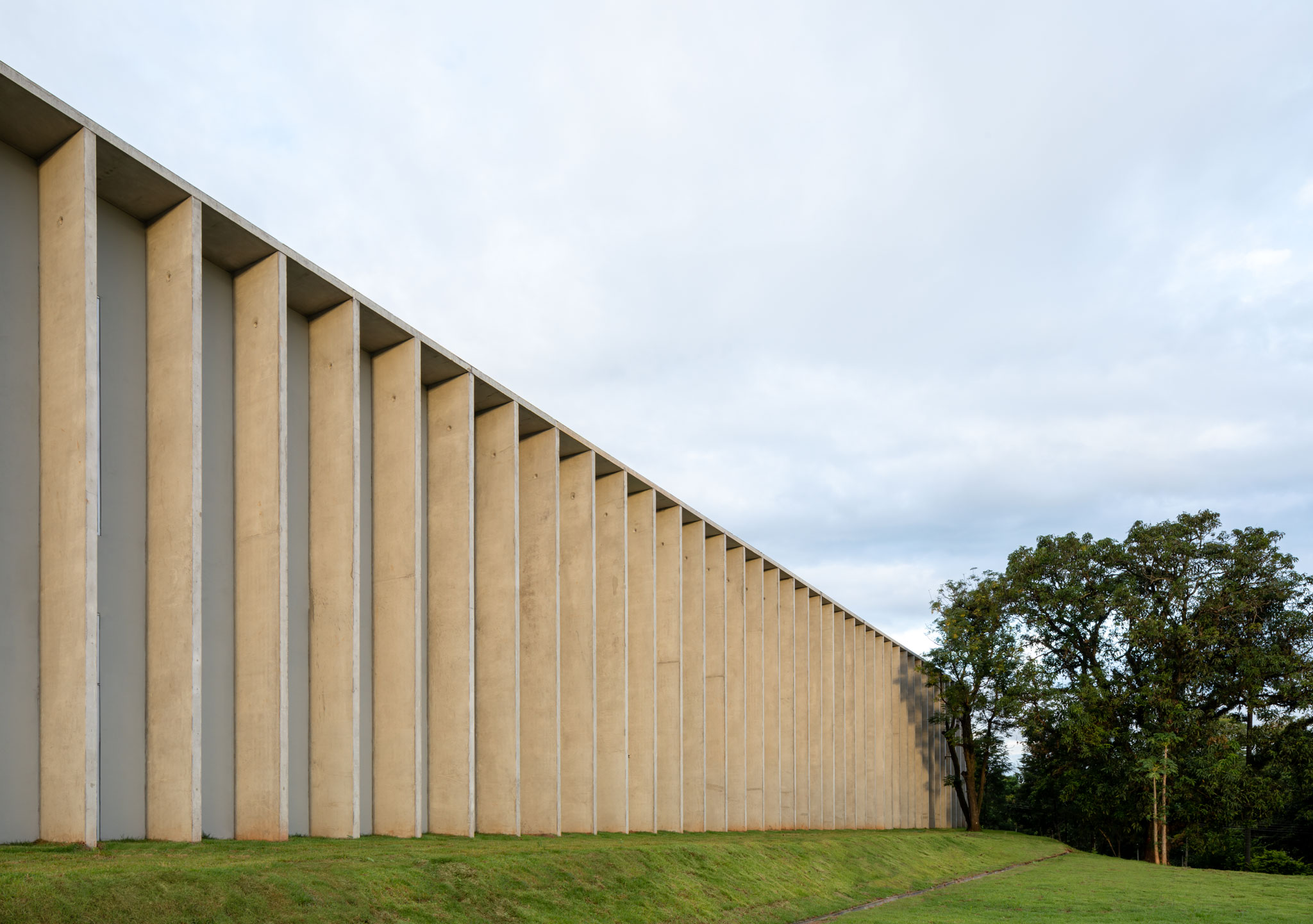

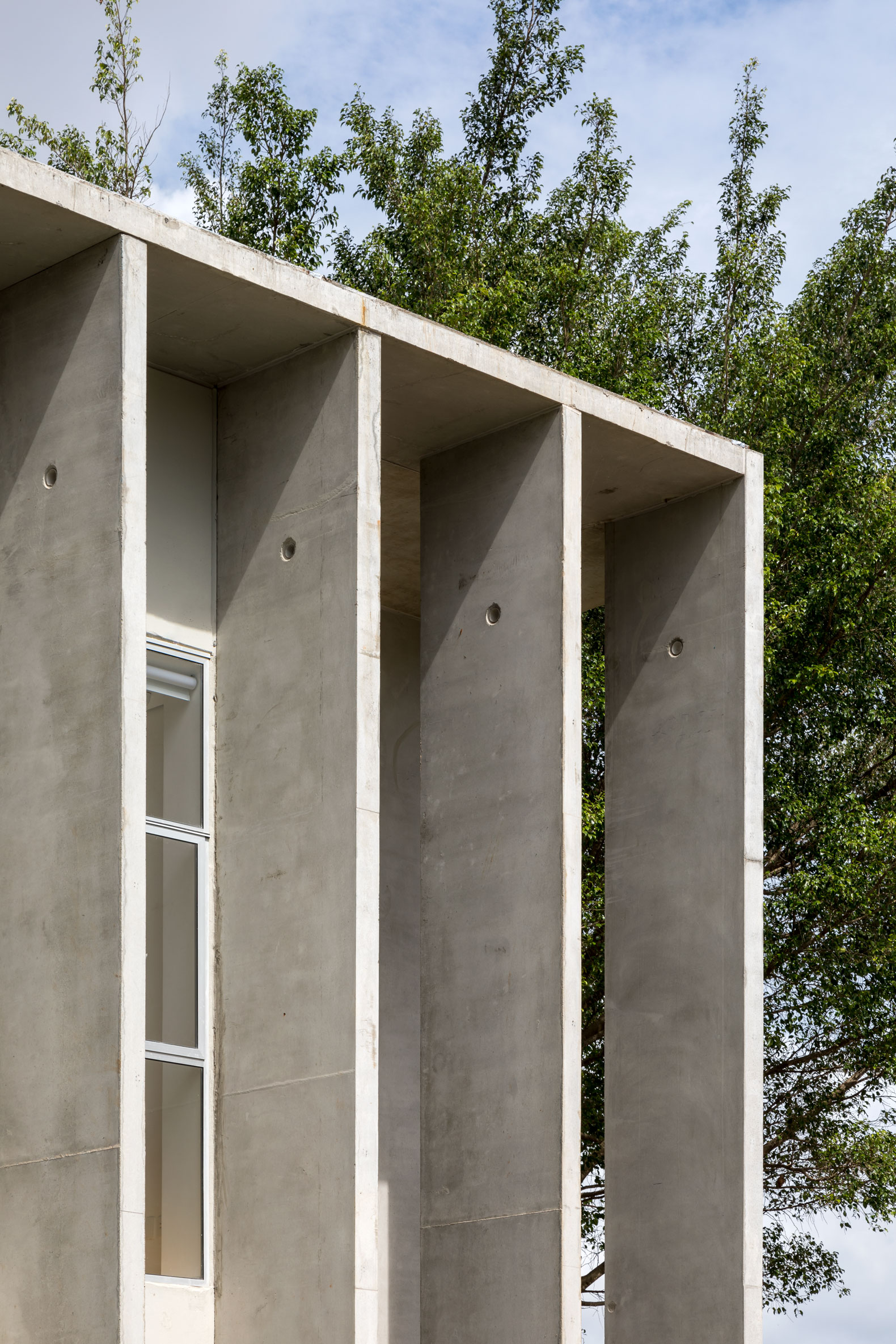

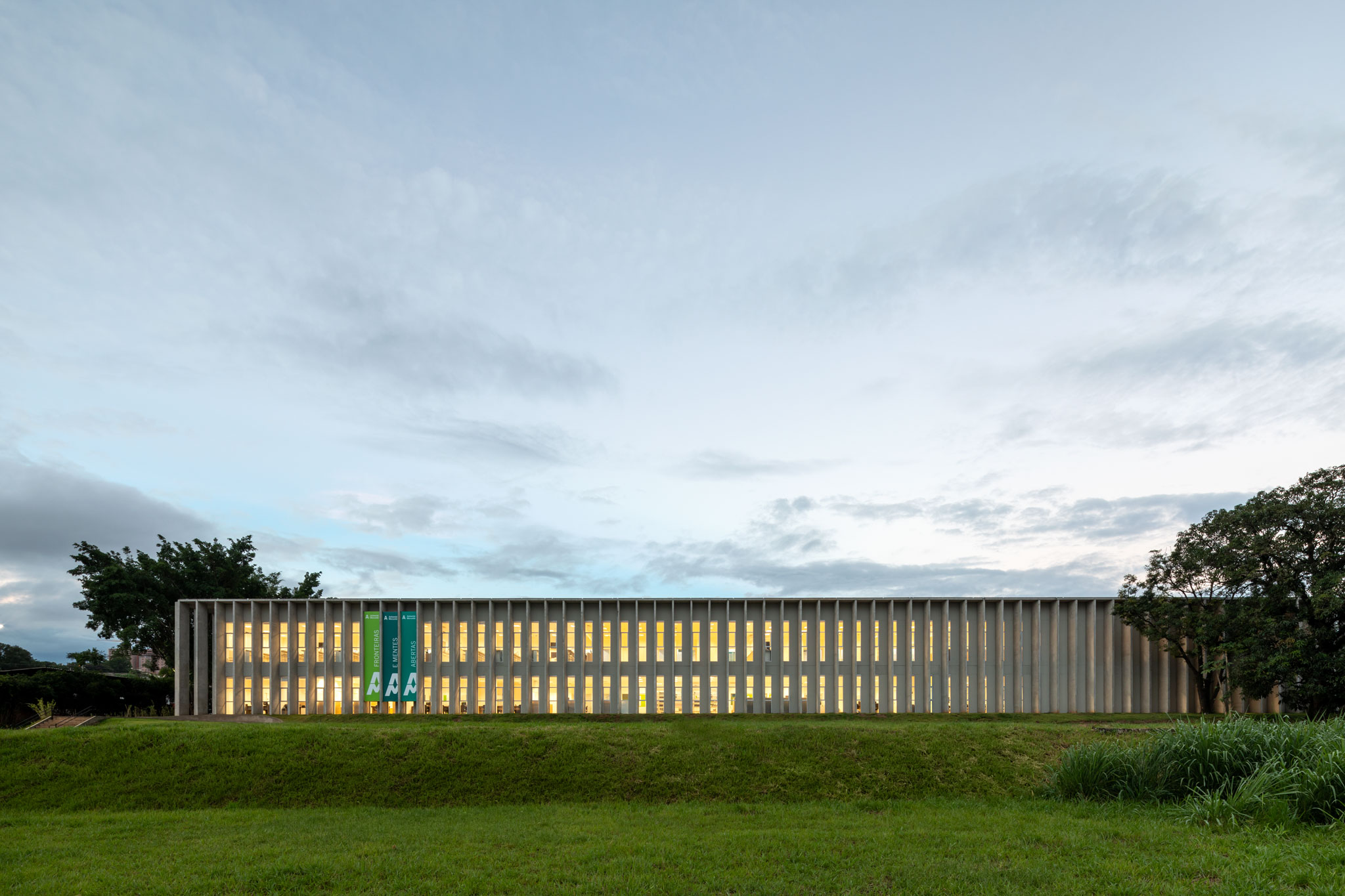

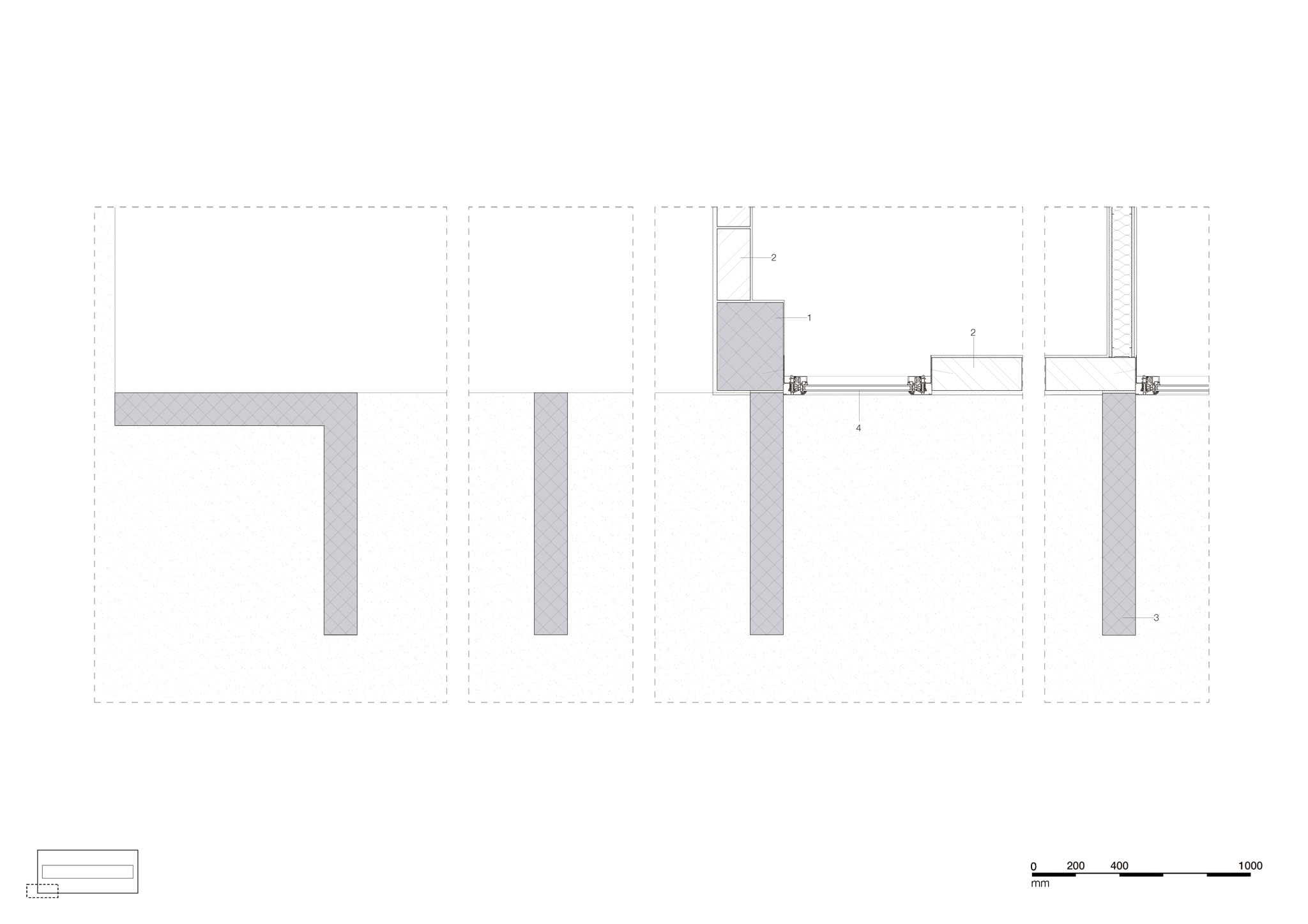

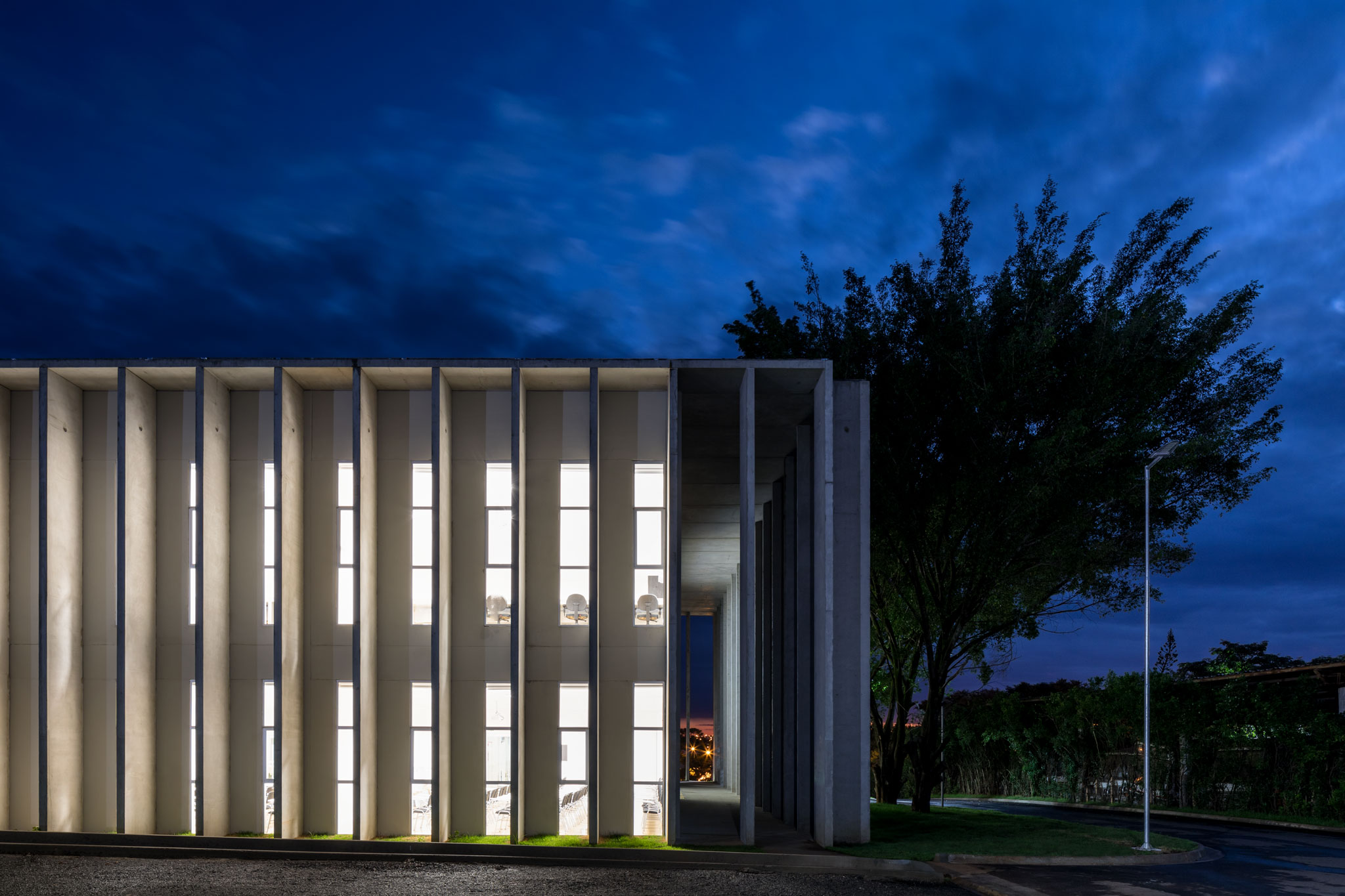

The intense Brazilian solar radiation is mitigated by a fully encompassing system of vertical slabs that fulfills the need for shade in every façade. Choosing a regular structural system enabled KAAN Architecten to feature glass in between the thin concrete slabs and the roof beams. In the case of São José dos Campos, this was molded in-situ, relying on the expertise of the local workforce, while in Piracicaba, it wasprefabricated to enhance sharpness and exactitude in the attachment system.

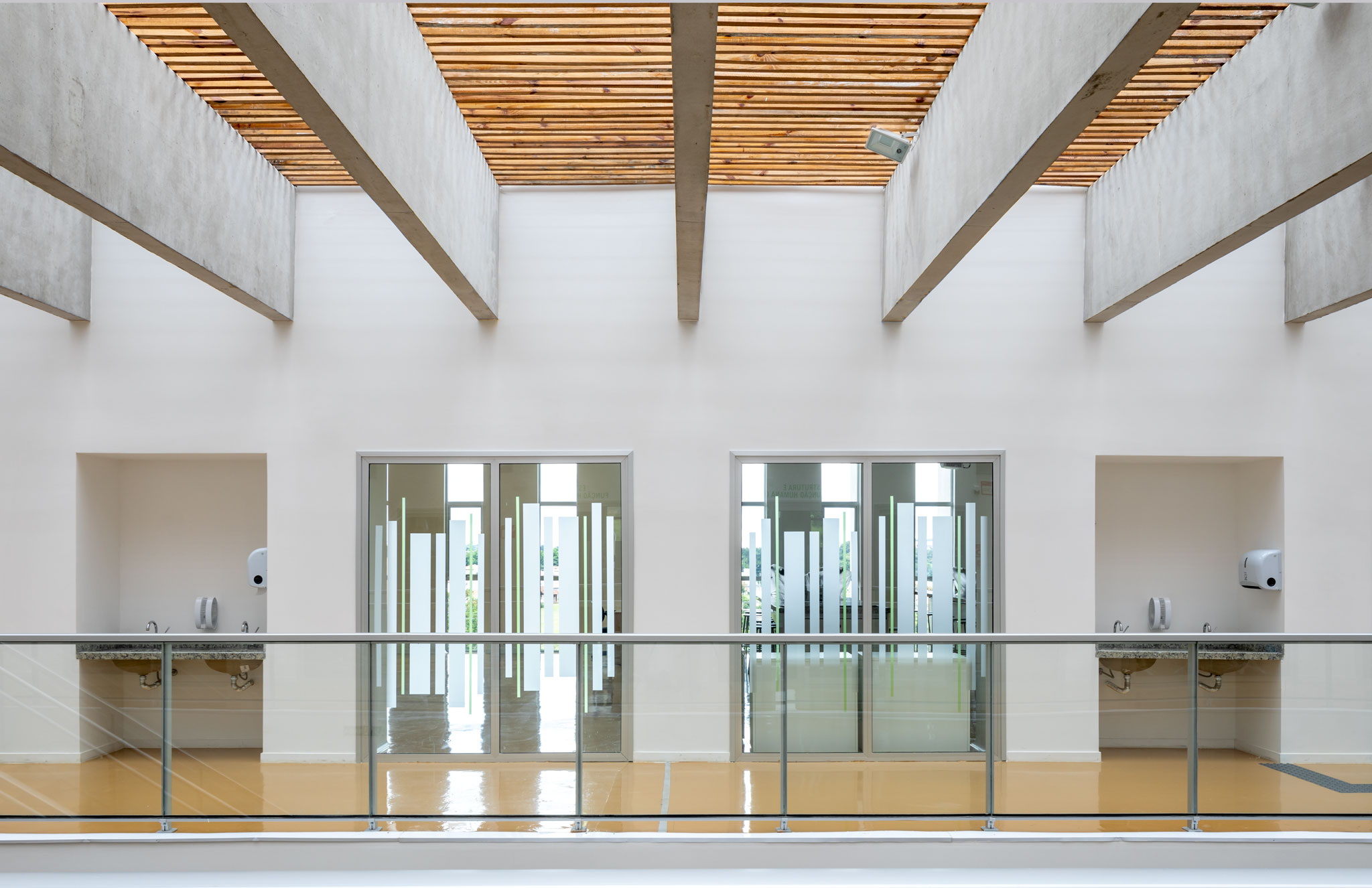

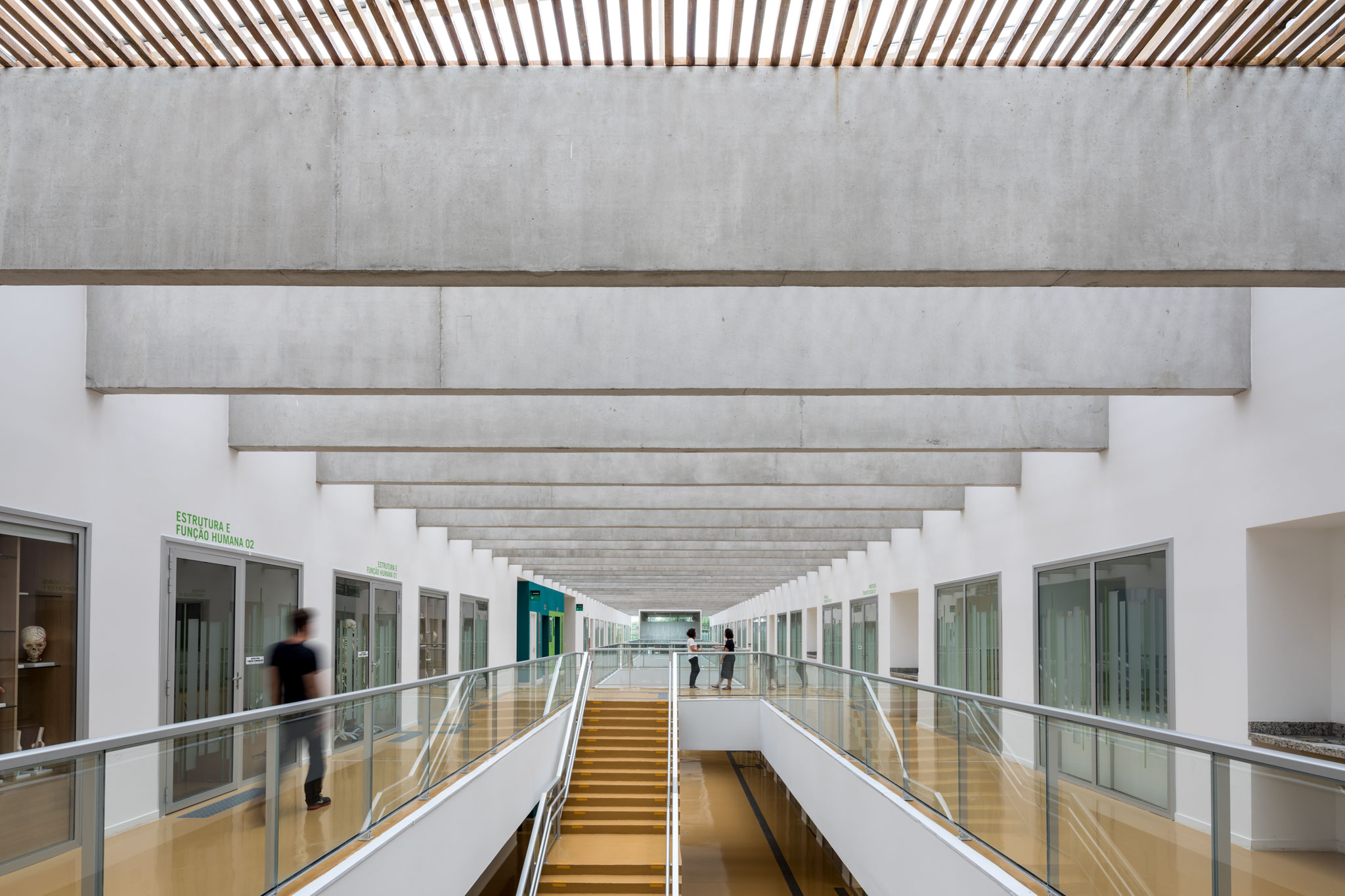

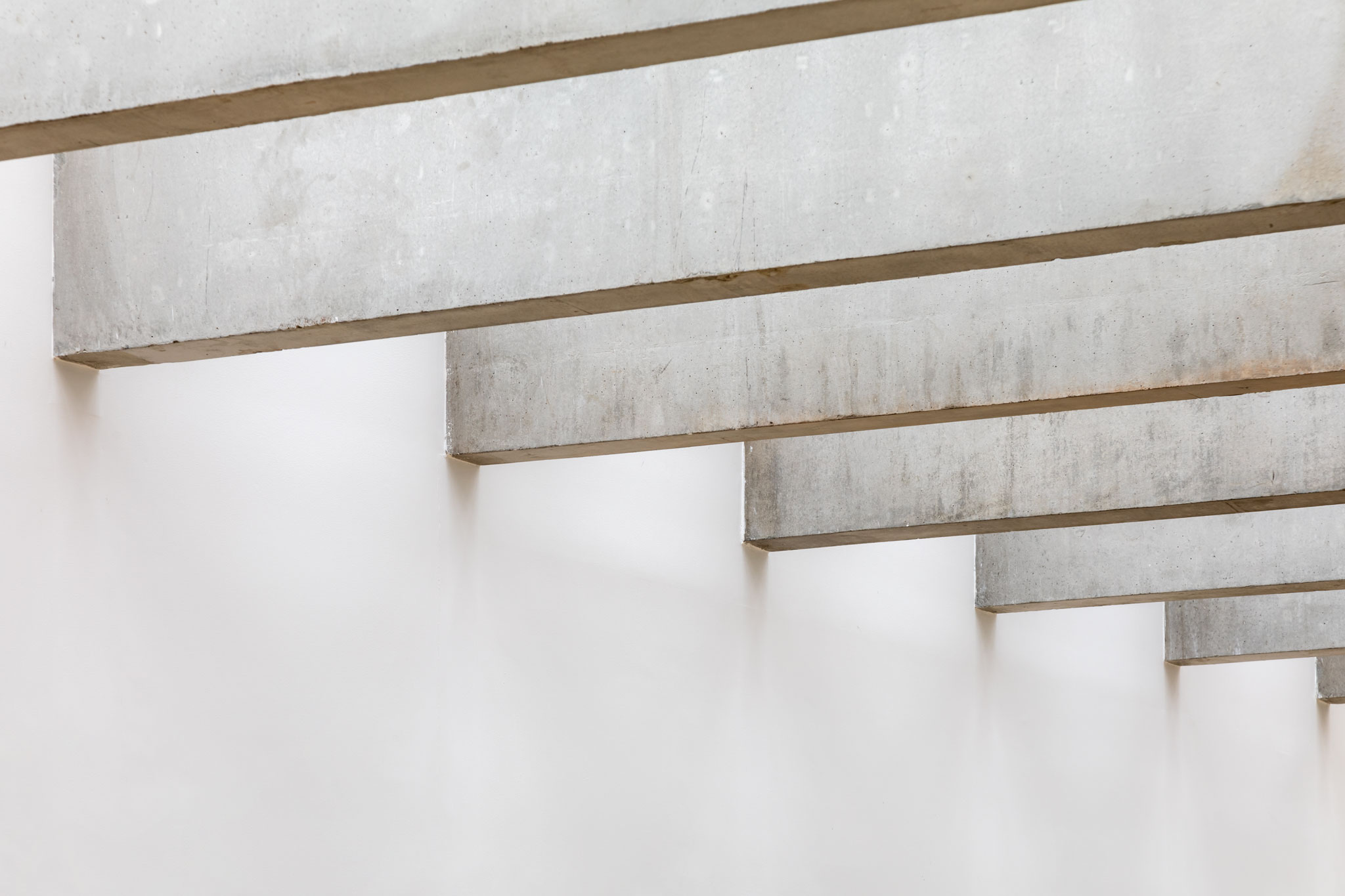

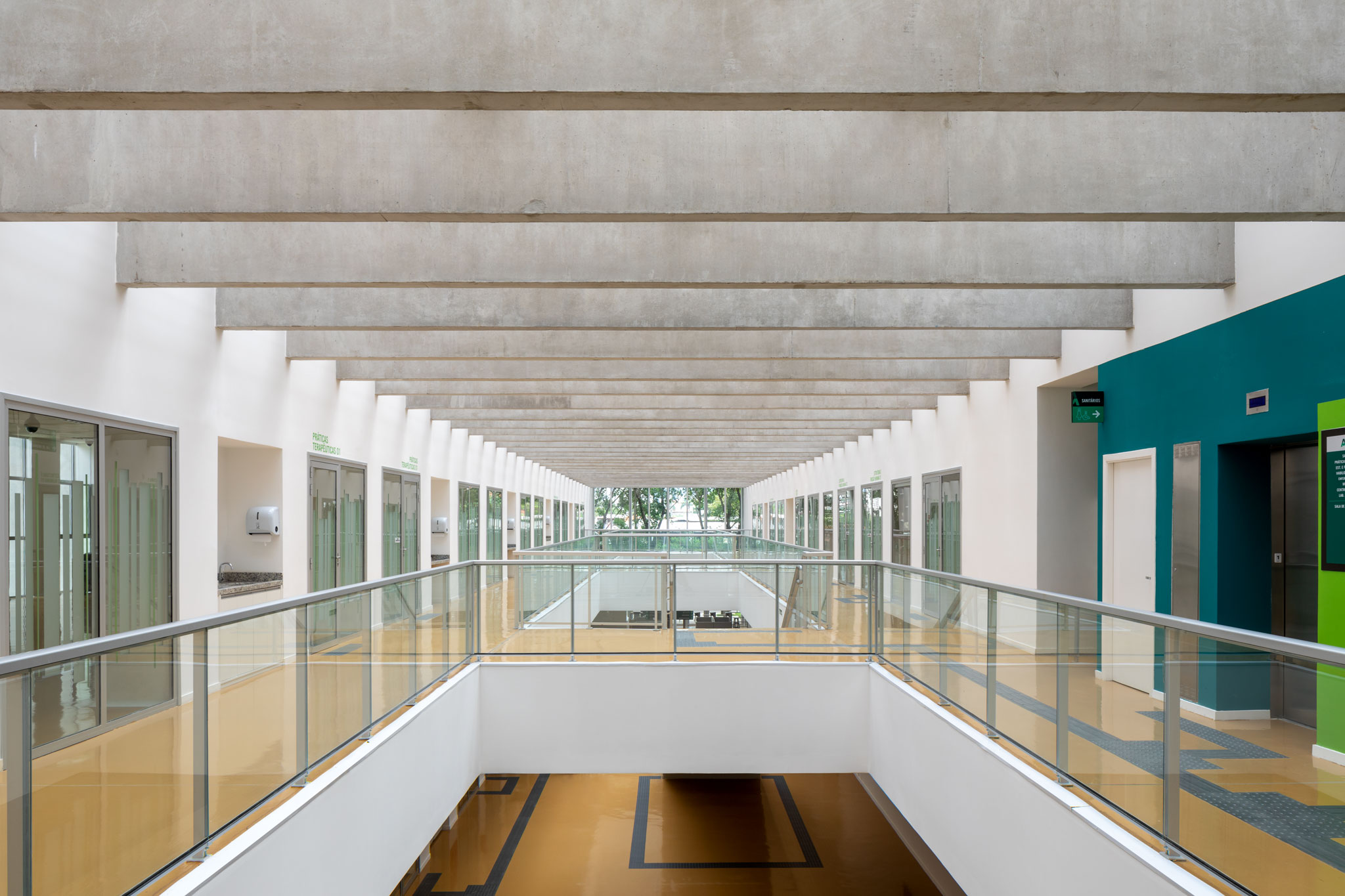

The wide use of glass in the façades enhances transparency and reveals a deep connection with the architecture of the cities. Moreover, a caramel resin floor comfortably reflects the abundant natural light in the social core and passageways of the buildings. The natural ventilation and light are optimized via a ceiling pergola in concrete and smaller wooden elements acting as sun blades.

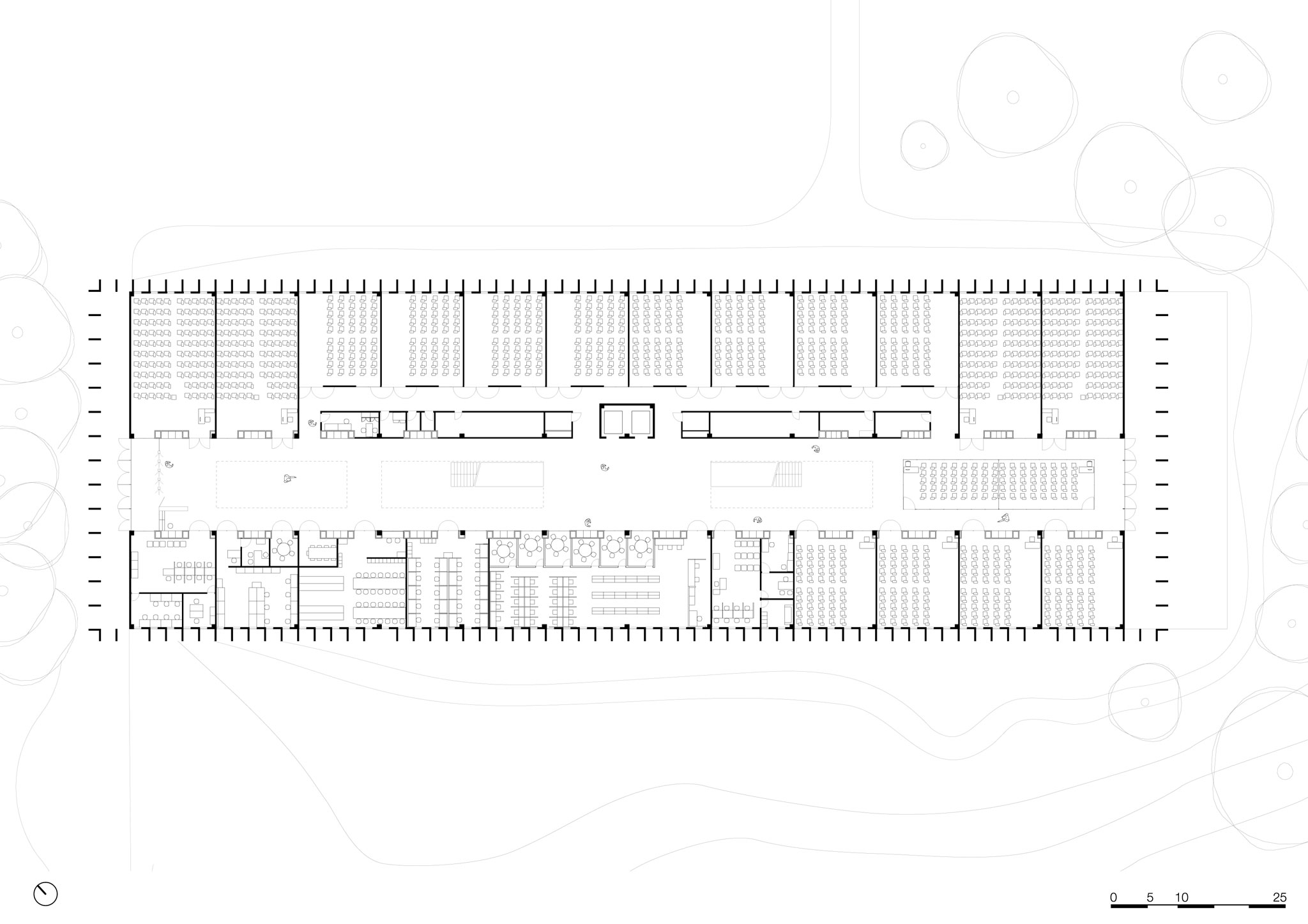

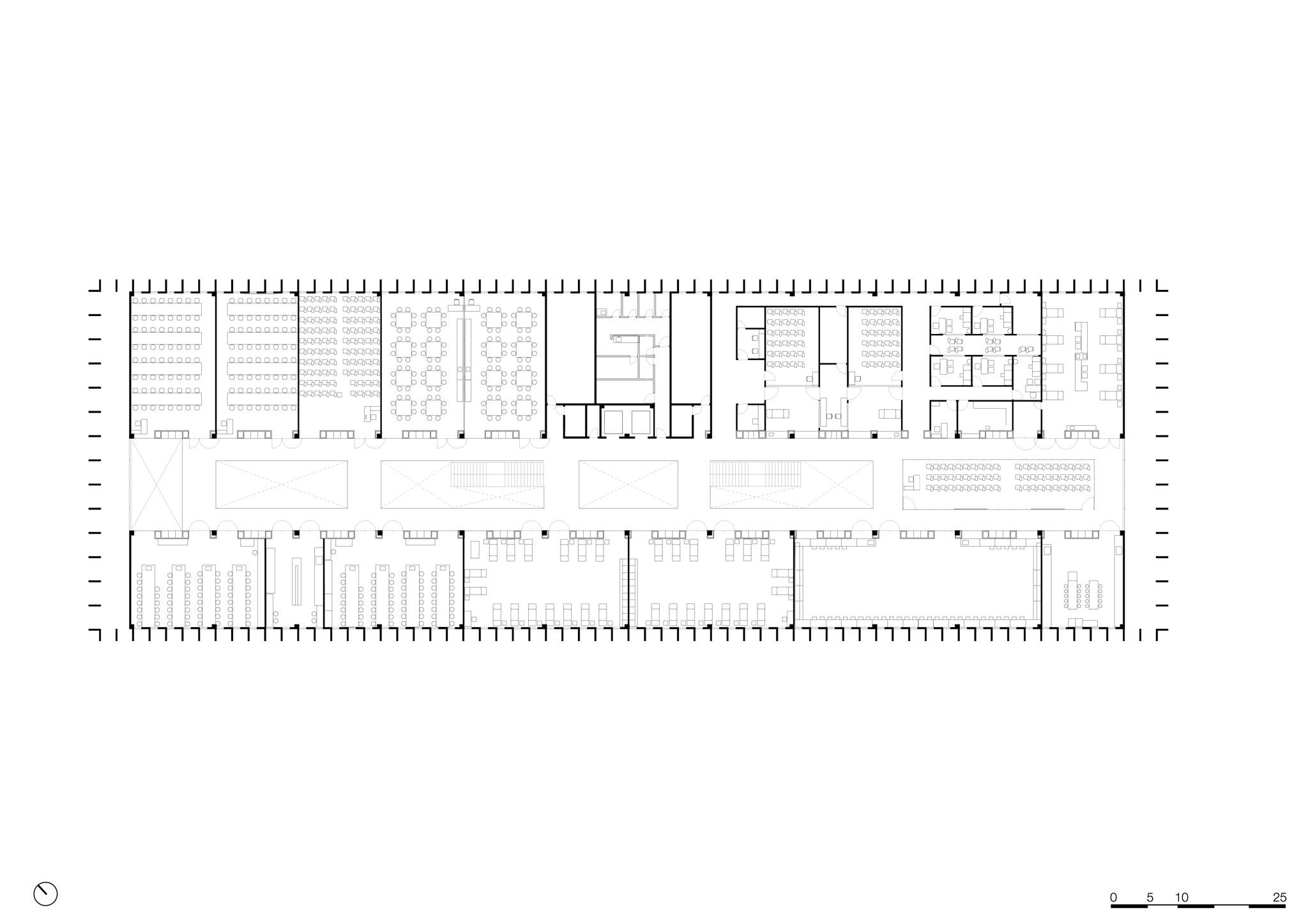

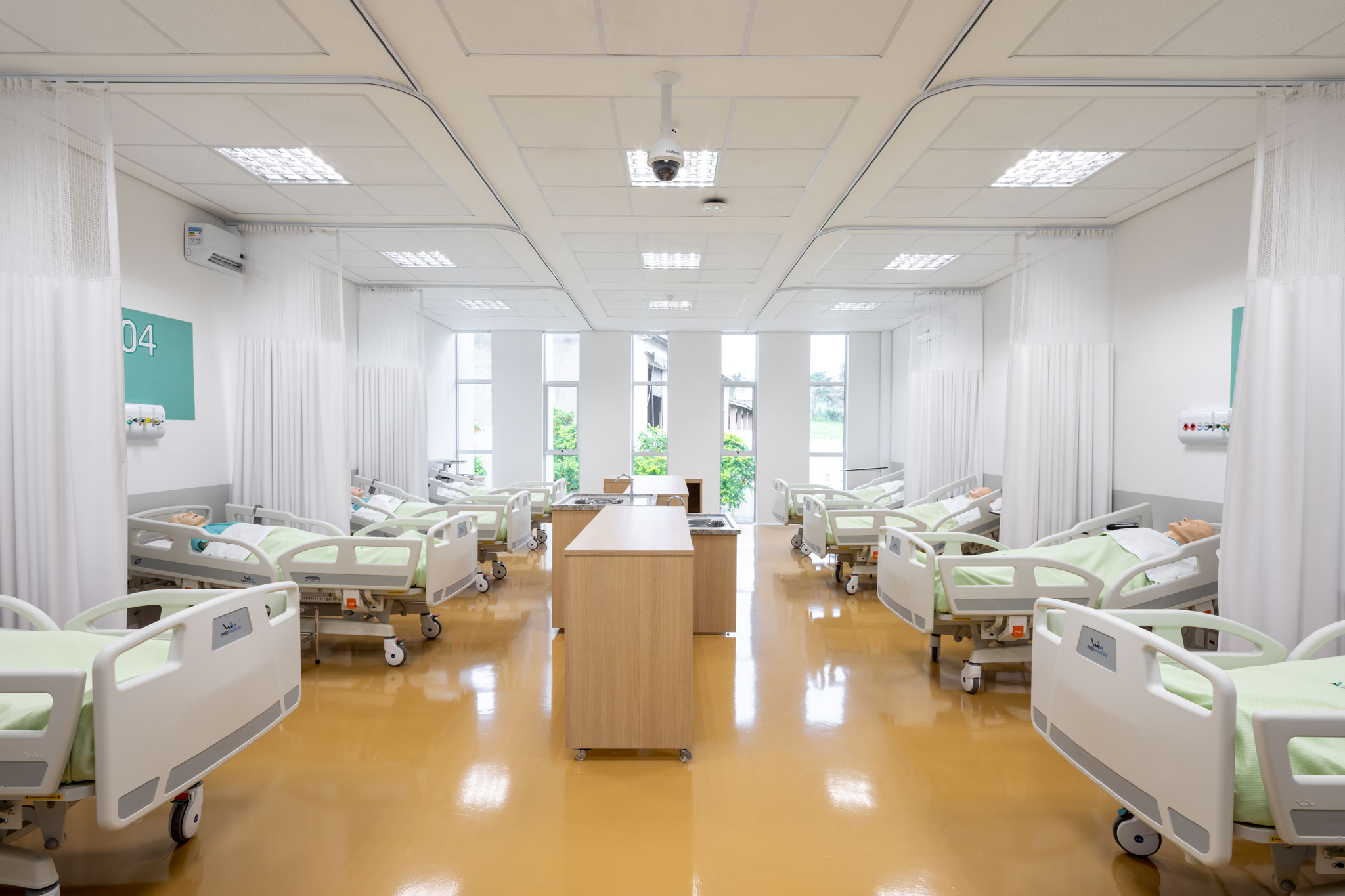

The shared program features classrooms, diverse laboratories for practice exercises and simulation, a space for the cafeteria, physiotherapy facilities, a library and offices. All educational spaces are situated alongside the longitudinal glazed façades to take advantage of the natural light and have been oriented towards the large-scale central void, to embody the buildings’ core social identity and its essence as a place for encounters, human connection and knowledge exchange.

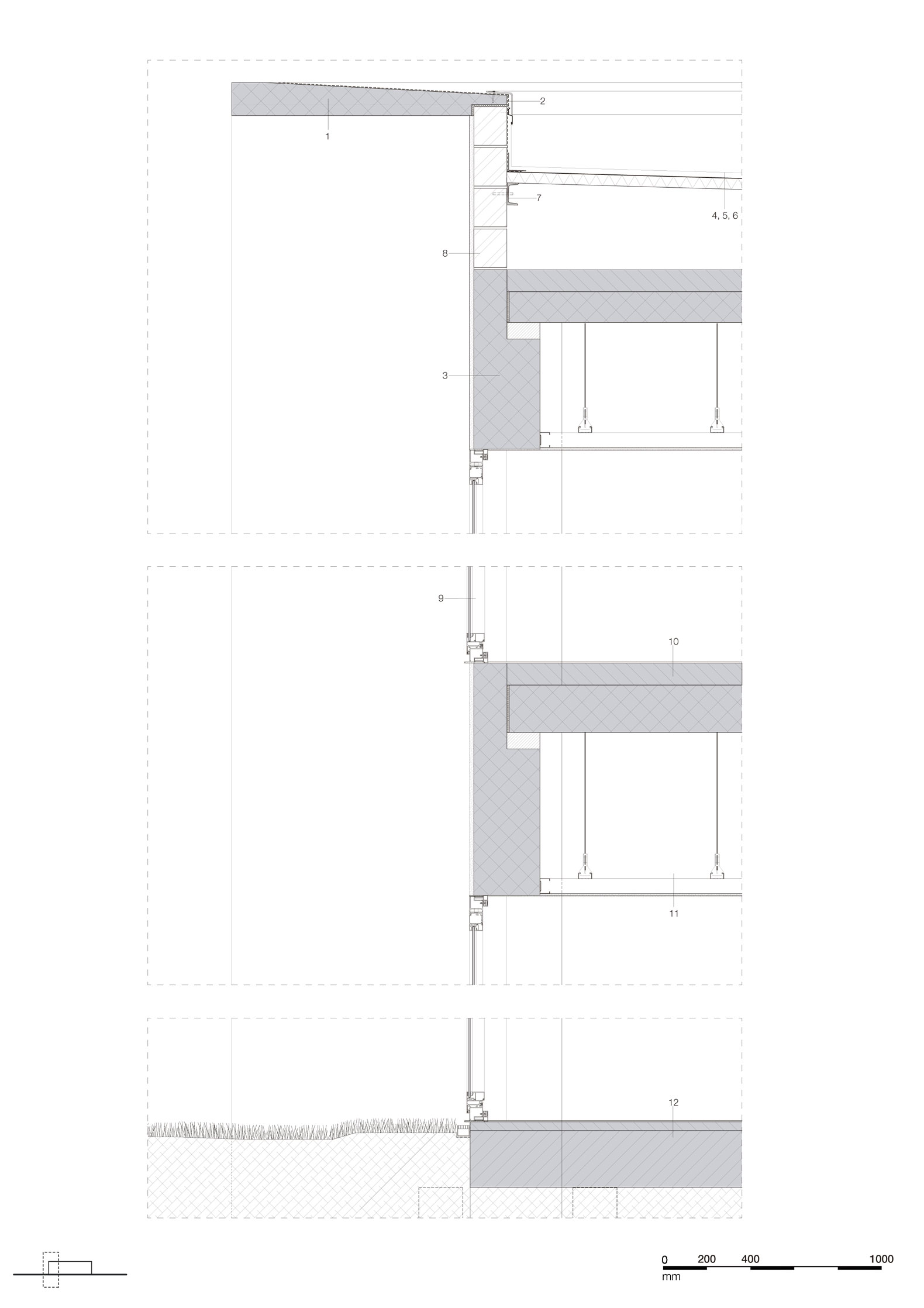

Following a careful analysis of the structural opportunities, a system of ribbed slabs made possible by in-situ molded concrete was adopted in the São José dos Campos building. In Piracicaba instead a system of alveolar slabs was employed, exploring the best possibilities of precast concrete. These choices allow wide free spans and a significant modularity of space based on a rigid 1.50 x 1.50 meter grid. Moreover, the in-depth study into solar radiation results in large floor-to-ceiling windows, which grant abundant daylight to classrooms and laboratories, playing with the deep shadows generated by the vertical concrete elements.

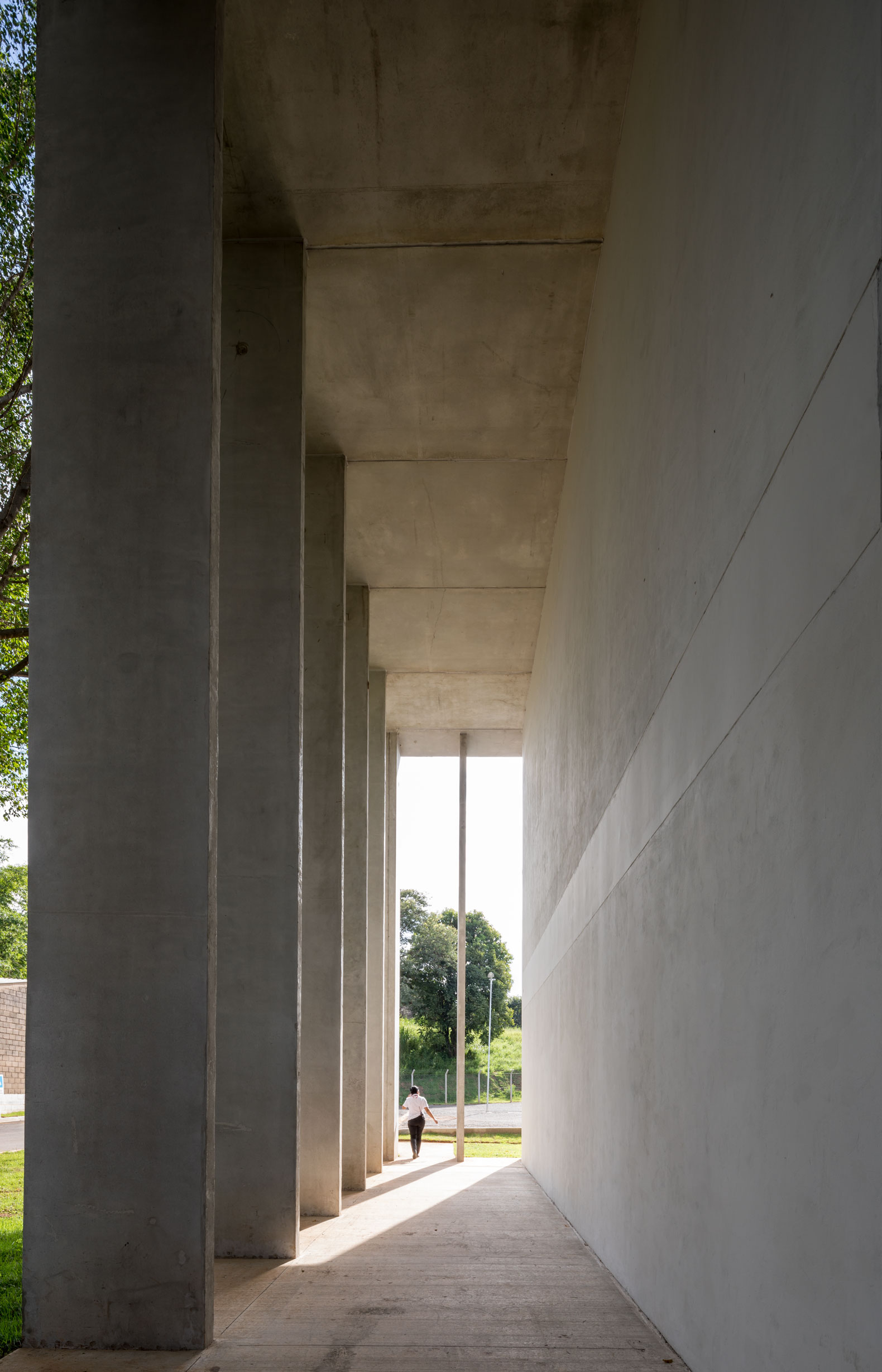

Sustainability plays a central role in the design of the two campuses, which feature an innovative energy management system for thermal control to prevent refrigeration waste and enhance the efficiency of the roof system with chimney effect. The use of BIM software and technology is also at the core of both projects: each façade has been designed following specific comfort studies, resulting in a wide protection porch for the north and south elevations, and in a dense grid of vertical brise-soleil for the east and west elevations.
KAAN Architecten is a Rotterdam based architectural firm operating in a global context and merging practical and academic expertise within the fields of architecture, urbanism and research on the built environment. The studio, led by Kees Kaan, Vincent Panhuysen and Dikkie Scipio, consists of an international team of architects, landscape architects, urban planners, engineers and graphic designers. KAAN Architecten believes in cross-pollination between projects and disciplines as an essential tool to fostering a critical debate within the studio.
Since the launch of the firm, KAAN Architecten has handled and supervised a wide range of projects, actively working with the private and the public sector, with project teams that become increasingly multidisciplinary and dynamic. KAAN Architecten maintains a culture of constant evolution, which is essential in a profession that changes at a rapid pace. KAAN Architecten seeks to uphold long-term relationships with its clients, consultants and partners.
KAAN Architecten’s projects transcend the traditional notion of scale and typology, ranging from furniture and interiors to urban development and from retail and offices to museums and buildings for health and education.
Selection of completed projects:
2017, B30 – Bezuidenhoutseweg 30, The Hague (NL)!
2016, De Bank – new KAAN Architecten’s office, Rotterdam (NL)
2016, Supreme Court of the Netherlands, The Hague (NL)!
2015, Provinciehuis of North-Brabant, ‘s-Hertogenbosch (NL)
2013, Dreamhouse, Rotterdam (NL)!
2013, Education Center Erasmus MC, Rotterdam (NL)!
2010, District Water Board Brabantse Delta, Breda (NL)
!2008, Crematorium Heimolen, Sint Niklaas (BE)!
2004, Netherlands Forensic Institute, The Hague
